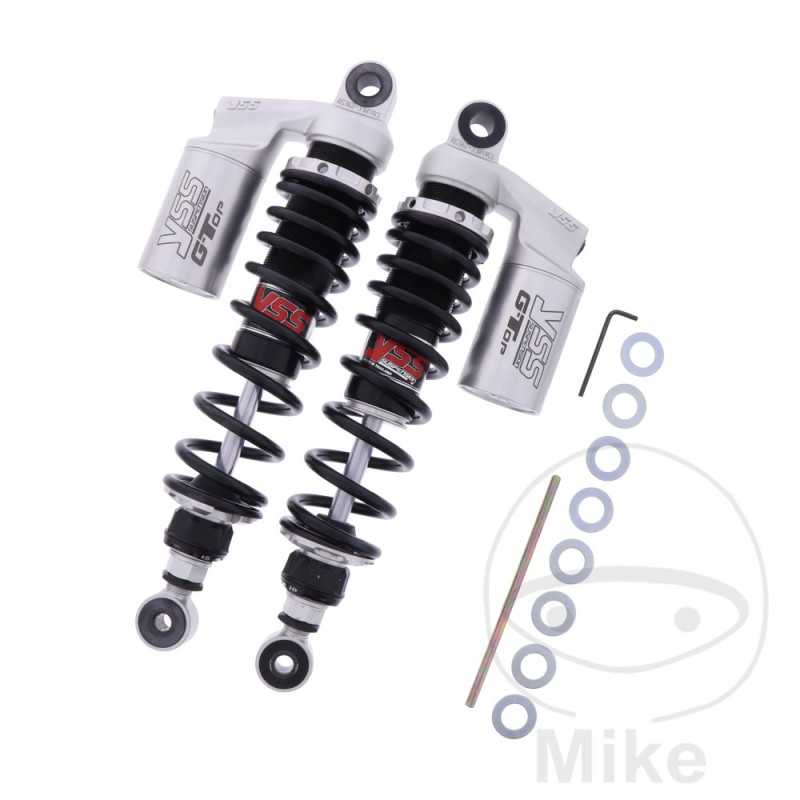

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.12

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) shock absorber.

The spring preload is locked by a pressure screw.

The length of the damper is adjustable by +-5mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 1 Bastidores: KZT00A henceforth00001-KZT00A henceforth27500 1977
Kawasaki Z 1000 A 85 CV, 63 kw 4cil. KZT00A 2 Bastidores: KZT00A henceforth27501-- 1978-1979
Kawasaki Z 900 A 81 CV, 60 kw 4cil. Z1F 4 Bastidores: Z1F henceforth89701-- 1976
Kawasaki Z1 900 79 CV, 59 kw 4cil. Z1F Bastidores: Z1F henceforth00001-Z1F henceforth20000 1973
Kawasaki Z1A 900 79 CV, 58 kw 4cil. Z1F Bastidores: Z1F-20001-Z1F-47499 1974
Kawasaki Z1B 900 79 CV, 58 kw 4cil. Z1F Bastidores: Z1F-47500-Z1F henceforth85700 1975
