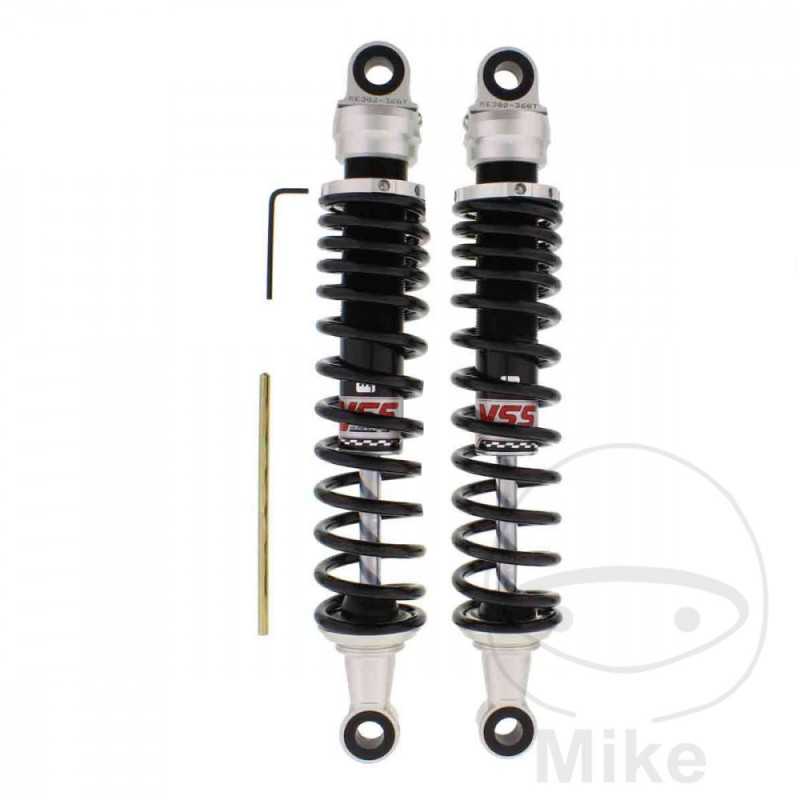

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.11

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 360MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki VX 800 60 CV, 44 kw 2cil. VS51B T Bastidores: VS51B-108324-- 1996-1997
Suzuki VX 800 61 CV, 45 kw 2cil. VS51B L Bastidores: VS51B-100001-VS51B-101717 1990
Suzuki VX 800 61 CV, 45 kw 2cil. VS51B M Bastidores: VS51B-101718-VS51B-103188 1991
Suzuki VX 800 61 CV, 45 kw 2cil. VS51B N Bastidores: VS51B-103189-VS51B-104781 1992
Suzuki VX 800 61 CV, 45 kw 2cil. VS51B P Bastidores: VS51B-104782-VS51B-106372 1993
Suzuki VX 800 61 CV, 45 kw 2cil. VS51B R Bastidores: VS51B-106373-VS51B-108323 1994-1995
Suzuki VX 800 U 34 CV, 25 kw 2cil. VS51B R Bastidores: VS51B-106373-VS51B-108323 1994-1995
Suzuki VX 800 U 34 CV, 25 kw 2cil. VS51B T Bastidores: VS51B-108324-- 1996-1997
Suzuki VX 800 U 50 CV, 37 kw 2cil. VS51B L Bastidores: VS51B-100001-VS51B-101717 1990
Suzuki VX 800 U 50 CV, 37 kw 2cil. VS51B M Bastidores: VS51B-101718-VS51B-103188 1991
Suzuki VX 800 U 50 CV, 37 kw 2cil. VS51B N Bastidores: VS51B-103189-VS51B-104781 1992
Suzuki VX 800 U 50 CV, 37 kw 2cil. VS51B P Bastidores: VS51B-104782-VS51B-106372 1993
