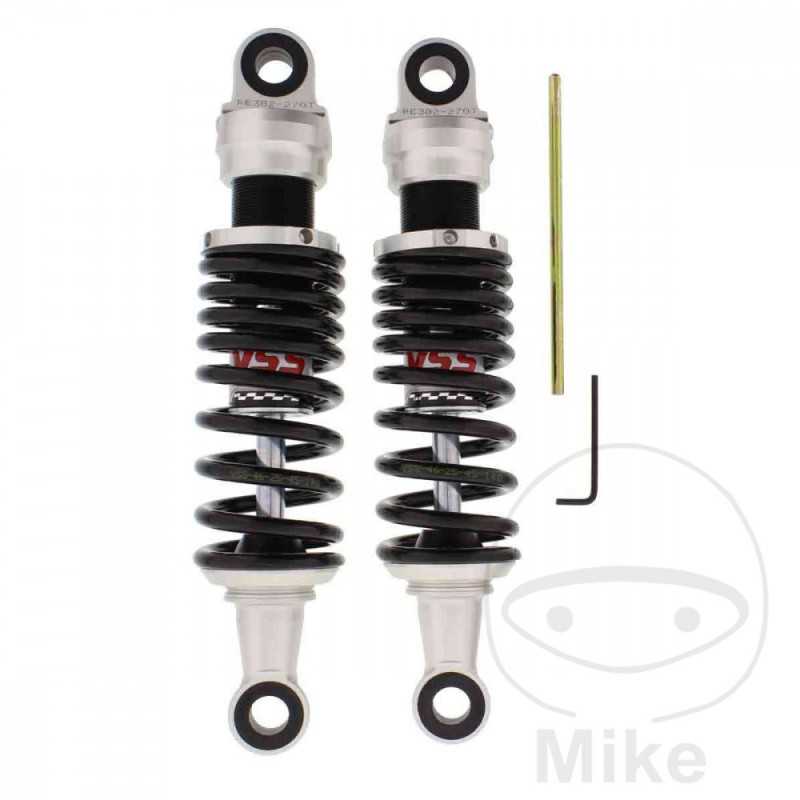

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.08

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 270mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-45
SPRING LENGTH: 140 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CA 125 Rebel 11 CV, 8,1 kw 2cil. JC24 S Bastidores: JC24-5000023-- 1995
Honda CA 125 Rebel 11 CV, 8,1 kw 2cil. JC24A T Bastidores: JC24A-TK000001-- 1996
Honda CA 125 Rebel 11 CV, 8,1 kw 2cil. JC26A V Bastidores: VTM JC26A henceforthVE300002-- 1997
Honda CA 125 Rebel 11 CV, 8,1 kw 2cil. JC26A W Bastidores: VTM JC26A henceforthWE300002-- 1998
Honda CA 125 Rebel 11 CV, 8,1 kw 2cil. JC26A X Bastidores: VTM JC26A henceforthXE300002-- 1999-2000
Honda CA 125 Rebel 80 Km/h 11 CV, 8,1 kw 2cil. JC24 S Bastidores: JC24-5000023-- 1995
Honda CA 125 Rebel 80 Km/h 11 CV, 8,1 kw 2cil. JC24A T Bastidores: JC24A-TK000001-- 1996
Honda CA 125 Rebel 80 Km/h 9,7 CV, 7,1 kw 2cil. JC26B V Bastidores: VTM JC26B henceforthVE000002-- 1997
Honda CA 125 Rebel 80 Km/h 9,7 CV, 7,1 kw 2cil. JC26B W Bastidores: VTM JC26B henceforthWE000002-- 1998
Honda CA 125 Rebel 80 Km/h 9,7 CV, 7,1 kw 2cil. JC26B X Bastidores: VTM JC26B henceforthXE000002-- 1999-2000
