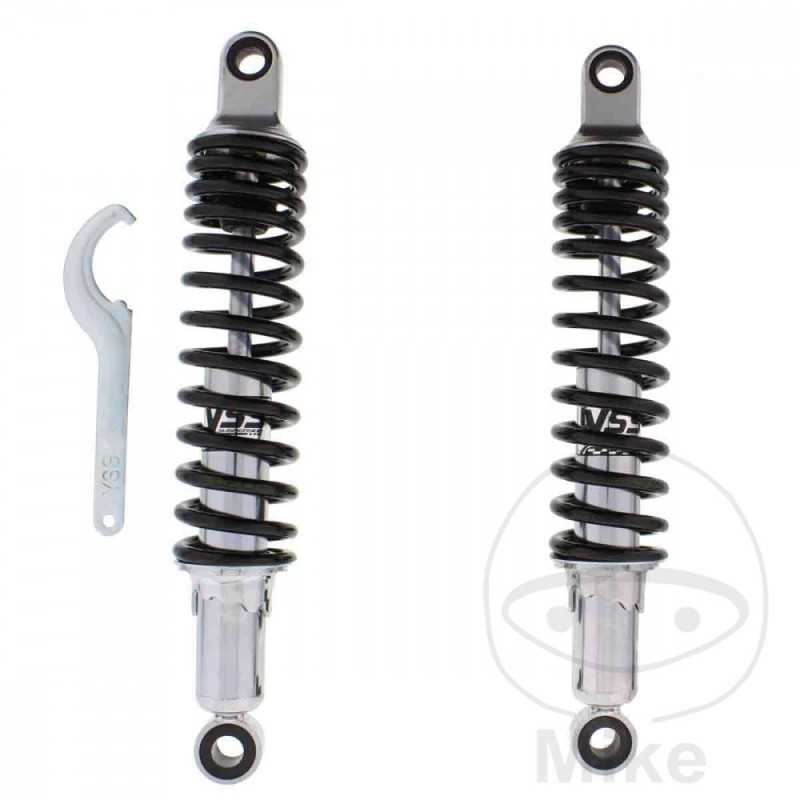

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.06

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500AC 5P Bastidores: ER500ACA henceforth82001-- 2005-2006
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 1 Bastidores: ER500ACA henceforth51001-ER500ACA henceforth67000 2001-2002
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 3 Bastidores: ER500ACA henceforth67001-ER500ACA henceforth72000 2003
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 4P Bastidores: ER500ACA henceforth72001-ER500ACA henceforth82000 2004
Kawasaki ER 500 D Twister 49 CV, 36 kw 2cil. - Bastidores: --- 2004-2006
Kawasaki ER 500 D Twister 50 CV, 37 kw 2cil. ER500ADA 1 Bastidores: ER500ADA henceforth51001-ER500ADA-999999 2001-2003
