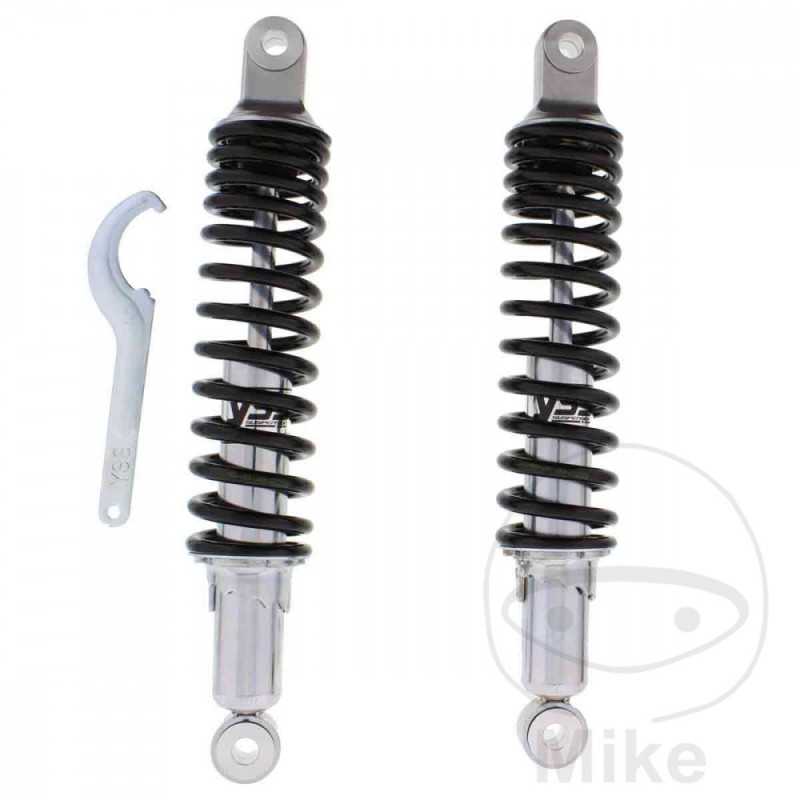

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.05

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson XL 1200 S Sportster Sport 49 CV, 36 kw 2cil. CHP XL/2 Bastidores: --- 1996-1997
Harley Davidson XL 1200 S Sportster Sport 59 CV, 43 kw 2cil. CHP XL/2 Bastidores: --- 1996-1997
Harley Davidson XL 1200 S Sportster Sport 61 CV, 45 kw 2cil. CHP XL/2 Bastidores: --- 1998
Harley Davidson XL 1200 S Sportster Sport 61 CV, 45 kw 2cil. CHP XL1 Bastidores: --- 1999-2003
Harley Davidson XLH 1200 Sportster 50 CV, 37 kw 2cil. CAP XL/2 Bastidores: --- 1988-1990
Harley Davidson XLH 1200 Sportster 58 CV, 43 kw 2cil. CAP XL/2 Bastidores: --- 1988-1990
Harley Davidson XLH 883 Sportster 24 CV, 17,5 kw 2cil. CAM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster 48 CV, 35 kw 2cil. CAM XL/2 Bastidores: --- 1988-1992
Harley Davidson XLH 883 Sportster Deluxe 24 CV, 17,5 kw 2cil. CFM XL/2 Bastidores: --- 1988-1991
Harley Davidson XLH 883 Sportster Deluxe 48 CV, 35 kw 2cil. CFM XL/2 Bastidores: --- 1988-1991
