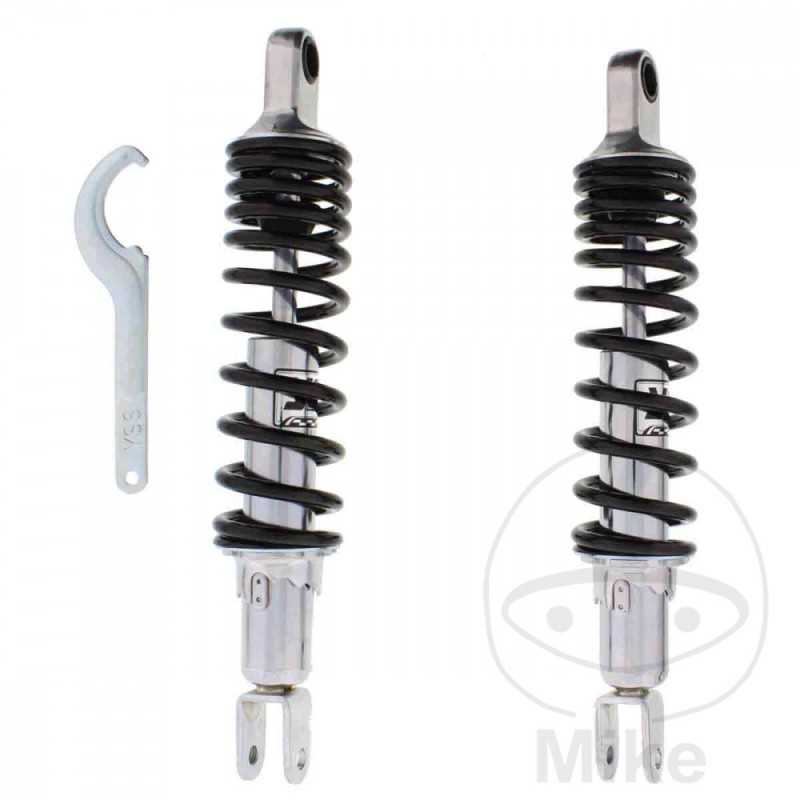

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.04

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 F Supersport 67 CV, 49 kw 4cil. CB750F 1 Bastidores: CB750F-1022152-CB750F-1040766 1976
Honda CB 750 F Supersport 73 CV, 54 kw 4cil. CB750G 2 Bastidores: CB750G-1002412-CB750G-1014194 1977-1978
Honda CB 750 K Four 63 CV, 46 kw 4cil. CB750 6 Bastidores: CB750-2550437-CB750-2586393 1976
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 0 Bastidores: CB750-1005084-CB750-1099999 1969-1970
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 1 Bastidores: CB750-1053409-CB750-1199999 1970-1971
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 2 Bastidores: CB750-2005737-CB750-2199999 1972-1975
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750K 7 Bastidores: CB750K-2719935-CB750K-2799999 1977-1978
Honda GL 1000 K Goldwing 78 CV, 57 kw 4cil. GL2 3 Bastidores: GL2-4052792-GL2-4060876 1978
Honda GL 1000 K Goldwing 82 CV, 60 kw 4cil. GL1 1 Bastidores: GL1-2000002-GL1-2041275 1976
Honda GL 1000 K Goldwing 82 CV, 60 kw 4cil. GL1 2 Bastidores: GL1-3010003-GL1-3026655 1977
