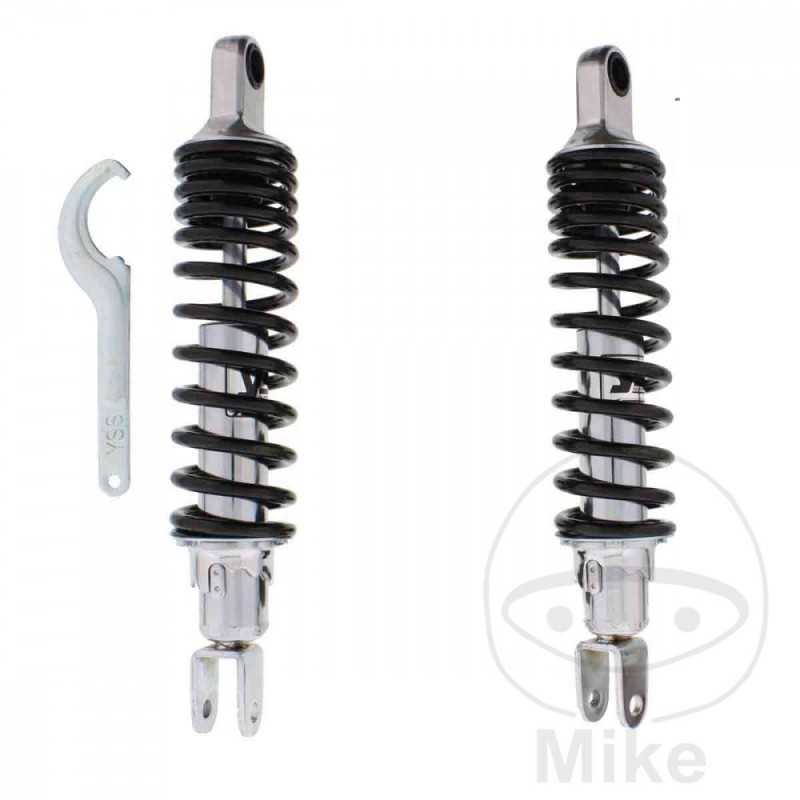

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.03

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 320MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 350 F Four 34 CV, 25 kw 4cil. CB350F Bastidores: CB350F-1034587-CB350F-1071219 1973-1975
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 4 Bastidores: CB350-4000001-- 1972
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 0 Bastidores: CB400F-1000001-- 1974-1975
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 1 Bastidores: CB400F-2000001-- 1976
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 2 Bastidores: CB400F-2100001-- 1977
Honda CB 450 K 45 CV, 33 kw 2cil. CB450 3 Bastidores: CB450-4000001-- 1970
Honda CB 500 K Four 48 CV, 35 kw 4cil. CB500 0 Bastidores: CB500-1011543-CB500-1099999 1971
Honda CB 500 K Four 48 CV, 35 kw 4cil. CB500 1 Bastidores: CB500-2004899-CB500-2099999 1972-1977
Honda CB 550 F Supersport 50 CV, 37 kw 4cil. CB550F 1 Bastidores: CB550F-1015400-CB550F-1027819 1976
Honda CB 550 F Supersport 50 CV, 37 kw 4cil. CB550F 2 Bastidores: CB550F-2104674-CB550F-2199999 1977-1978
Honda CB 550 K Four 50 CV, 37 kw 4cil. CB550K 3 Bastidores: CB550K-2011718-CB550K-2026474 1977-1978
Honda CJ 360 T 34 CV, 25 kw 2cil. CJ360T Bastidores: CJ360T-2013070-CJ360T-2015444 1976-1979
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 A Bastidores: NC01-3000002-NC01-3003047 1980
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 B Bastidores: NC01-3100002-NC01-3106001 1981
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 A Bastidores: NC01-2100001-- 1980
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 B Bastidores: NC01-2200466-NC01-2203476 1981
Honda CM 400 T Custom 27 CV, 20 kw 2cil. NC01 C Bastidores: NC01-3200004-NC01-3203044 1982-1983
Honda CM 400 T Custom 43 CV, 32 kw 2cil. NC01 C Bastidores: NC01-2300004-NC01-2301420 1982-1983
