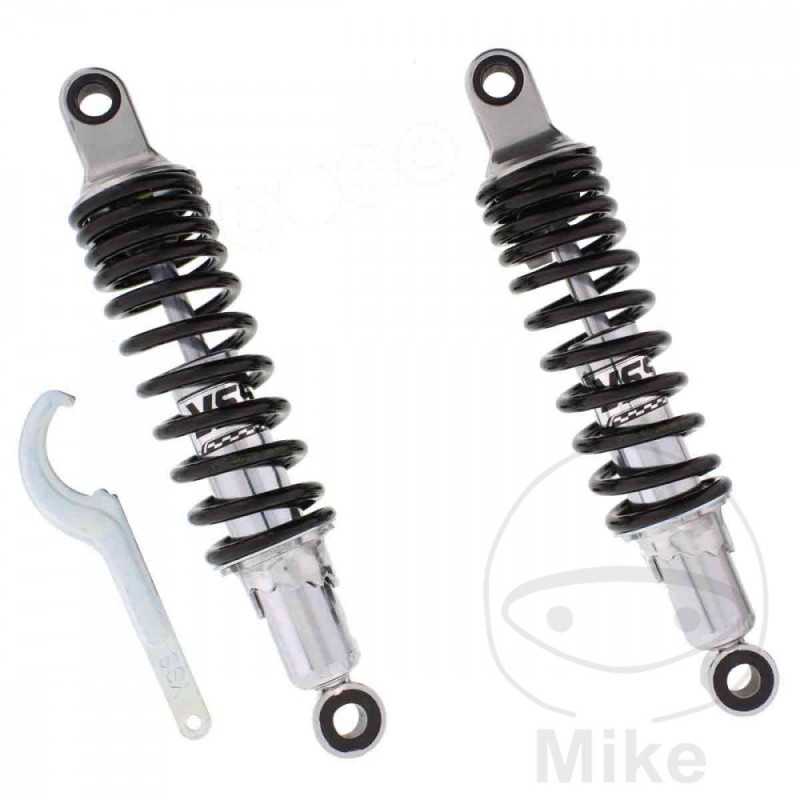

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.02

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 300 mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 1 Bastidores: ER500AAA henceforth00001-ER500AAA henceforth15000 1997
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 2 Bastidores: ER500AAA henceforth15001-ER500AAA henceforth28000 1998
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 3 Bastidores: ER500AAA henceforth28001-ER500AAA henceforth41000 1999
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 4 Bastidores: ER500AAA henceforth41001-ER500AAA-999999 2000
