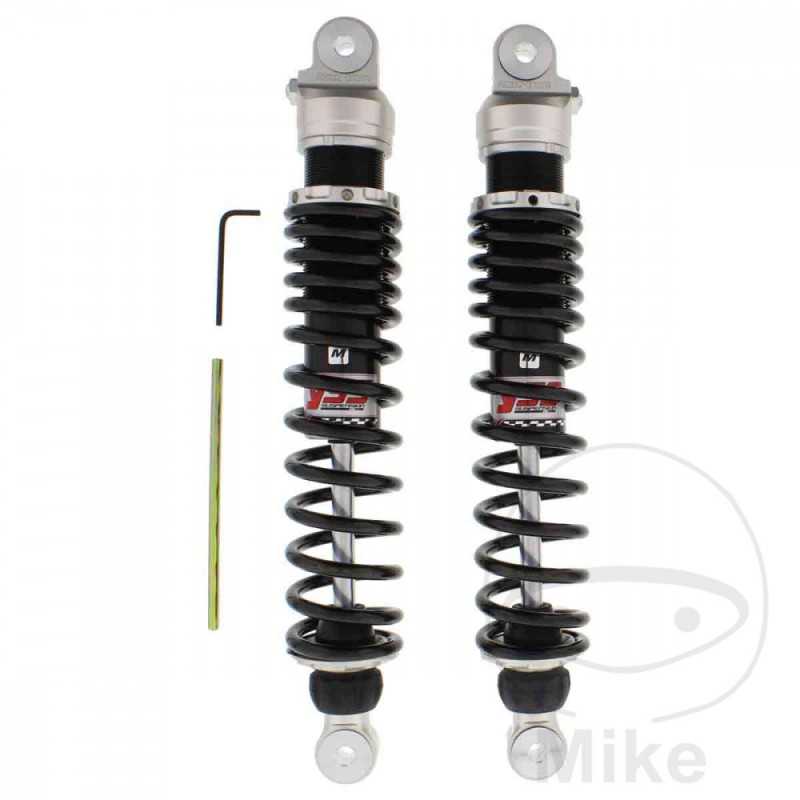

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.47

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 370mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 1U6 Bastidores: 1U6 henceforth00101-1U6-100000 1976-1977
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 1U6 Bastidores: 1U6-100301-1U6-103640 1978
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 1U6 Bastidores: 1U6-110501-1U6-111676 1979
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 4E5 Bastidores: 1U6-130101-1U6-140000 1980
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 4E5 Bastidores: 1U6-140101-1U6-160000 1981-1982
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 4E5 Bastidores: 1U6-160101-1U6-200000 1983-1985
Yamaha XT 500 27 CV, 20 kw 1cil. 1U6 56U Bastidores: 1U6-200101-1U6-205000 1986-1989
