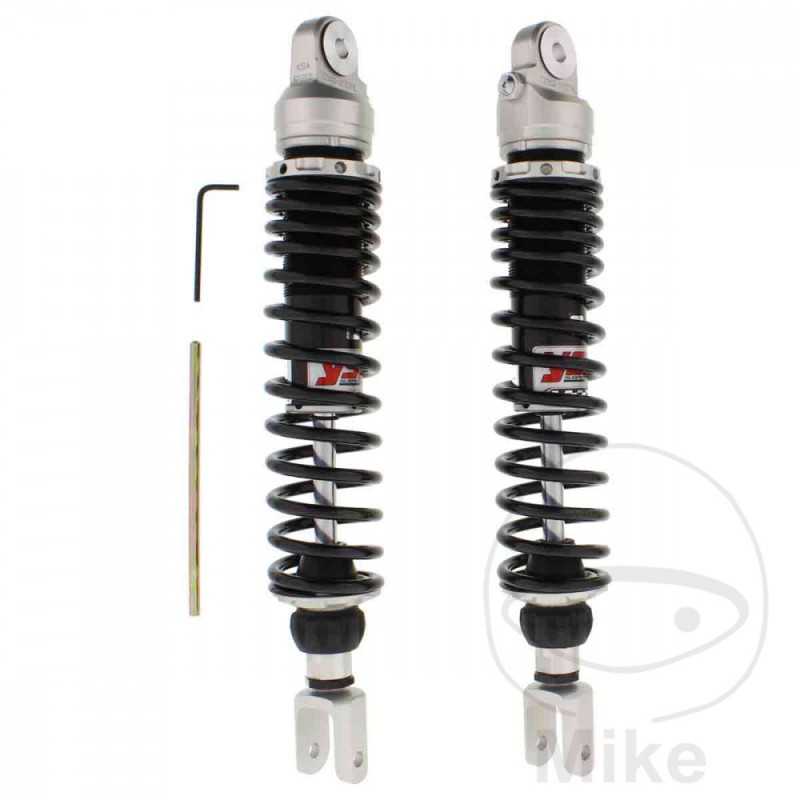

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.33

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 370mm
LOWER FIXING: FORK
FORK WIDTH: 24 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW C1 125 15 CV, 11 kw 1cil. C1 0191 Bastidores: --- 2000-2004
BMW C1 125 ABS 15 CV, 11 kw 1cil. C1 0191 Bastidores: --- 2000-2004
BMW C1 200 18 CV, 13 kw 1cil. C1 0192 Bastidores: --- 2001-2004
BMW C1 200 ABS 18 CV, 13 kw 1cil. C1 0192 Bastidores: --- 2001-2004
