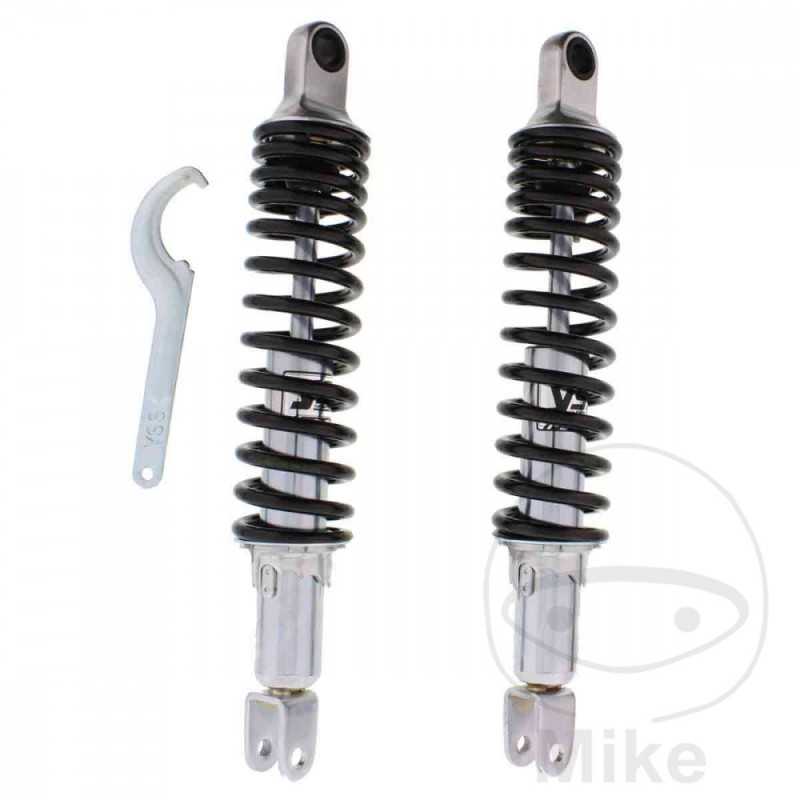

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.28

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
Length : 365mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBX 1000 105 CV, 77 kw 6cil. CB1 Z Bastidores: CB1-2000871-CB1-2024578 1979
Honda CBX 1000 105 CV, 77 kw 6cil. SC03 A Bastidores: SC03-2000156-SC03-2099999 1980
