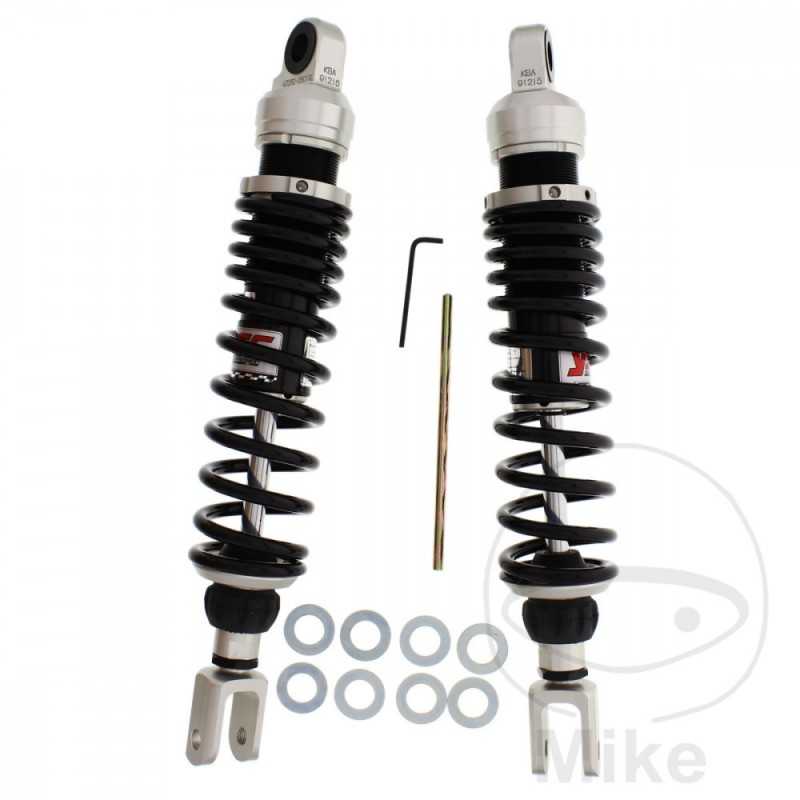

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.22

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 360MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 A Bastidores: SC01-2100002-SC01-2112185 1980
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-2200038-SC01-2209987 1981
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 Z Bastidores: SC01-2000050-SC01-2015357 1979
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-2000019-SC09-2099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-2100001-SC09-2199999 1983
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-4000012-SC01-4010949 1981
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-4000025-SC09-4099999 1982
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-4100001-SC09-4199999 1983
