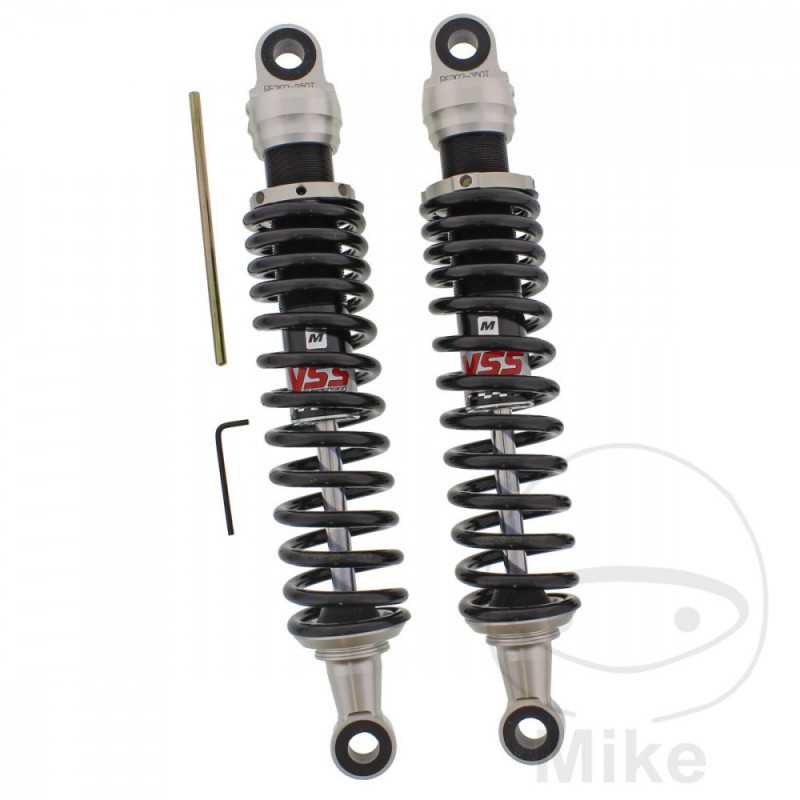

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.16

Milled aluminum body, adjustable spring strut with spring preload.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500AC 5P Bastidores: ER500ACA henceforth82001-- 2005-2006
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 1 Bastidores: ER500ACA henceforth51001-ER500ACA henceforth67000 2001-2002
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 3 Bastidores: ER500ACA henceforth67001-ER500ACA henceforth72000 2003
Kawasaki ER 500 C Twister 34 CV, 25 kw 2cil. ER500ACA 4P Bastidores: ER500ACA henceforth72001-ER500ACA henceforth82000 2004
