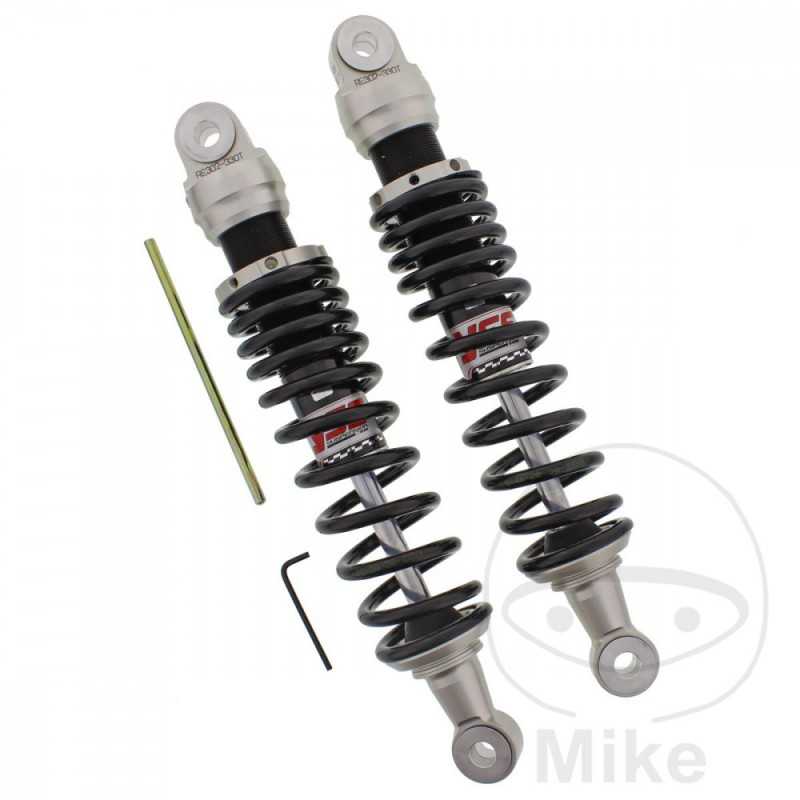

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.14

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12.7 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Harley Davidson XL 1200 R Sportster Roadster 67 CV, 49 kw 2cil. CLP XL2 Bastidores: --- 2004-2006
Harley Davidson XL 883 R Sportster 33 CV, 24 kw 2cil. CKM XL1 Bastidores: --- 2002-2003
Harley Davidson XL 883 R Sportster 53 CV, 39 kw 2cil. CKM XL1 Bastidores: --- 2002-2003
Harley Davidson XLH 1200 Sportster 46 CV, 34 kw 2cil. CAP XL/2 Bastidores: --- 1994
Harley Davidson XLH 1200 Sportster 49 CV, 36 kw 2cil. CAP XL/2 Bastidores: --- 1995
Harley Davidson XLH 1200 Sportster 52 CV, 38 kw 2cil. CAP XL/2 Bastidores: --- 1994
Harley Davidson XLH 1200 Sportster 58 CV, 43 kw 2cil. CAP XL/2 Bastidores: --- 1995
