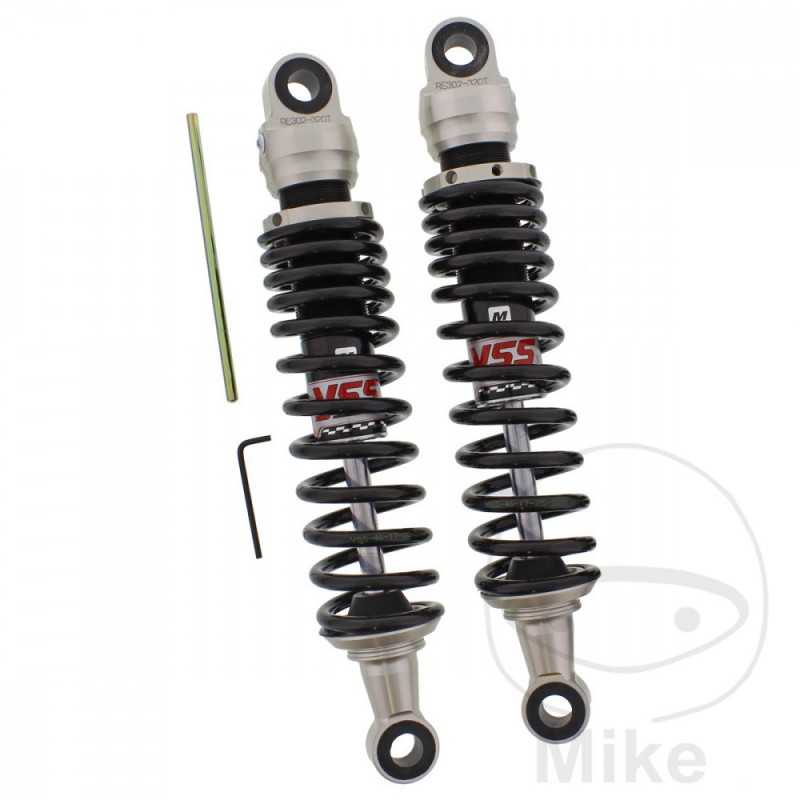

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.11

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 3H0 Bastidores: 2J4-100101-2J4-200000 1979
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 4E6 Bastidores: 2J4-210101-2J4-220000 1980
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 4E6 Bastidores: 2J4-240101-2J4-250000 1981
Yamaha SR 500 G llanta de fundición 27 CV, 20 kw 1cil. 2J4 4E6 Bastidores: 2J4-250101-2J4-260000 1982-1983
Yamaha SR 500 SP discos de freno 24 CV,17,3 kw 1cil. 48T 3EB2 Bastidores: 48T henceforth30101-48T henceforth34000 1991
Yamaha SR 500 SP discos de freno 27 CV, 20 kw 1cil. 48T 1RU Bastidores: 48T henceforth14101-48T henceforth25000 1986-1989
Yamaha SR 500 SP frenos de tambor 24 CV,17,3 kw 1cil. 48T 3EB3 Bastidores: 48T henceforth34101-48T henceforth36000 1991
Yamaha SR 500 SP frenos de tambor 24 CV,17,3 kw 1cil. 48T 3EB4 Bastidores: 48T henceforth36101-48T henceforth41000 1992
Yamaha SR 500 SP frenos de tambor 24 CV,17,3 kw 1cil. 48T 3EB5 Bastidores: 48T henceforth41101-- 1993-1994
Yamaha SR 500 SP frenos de tambor 24 CV,17,3 kw 1cil. 48T 3EB6 Bastidores: 48T henceforth52101-- 1995-1999
Yamaha SR 500 SP frenos de tambor 27 CV, 20 kw 1cil. 48T 3EB1 Bastidores: 48T henceforth26101-48T henceforth30000 1988-1990
Yamaha SR 500 SP llanta de radios 27 CV, 20 kw 1cil. 48T 48U Bastidores: 48T henceforth00101-48T henceforth13000 1984-1986
