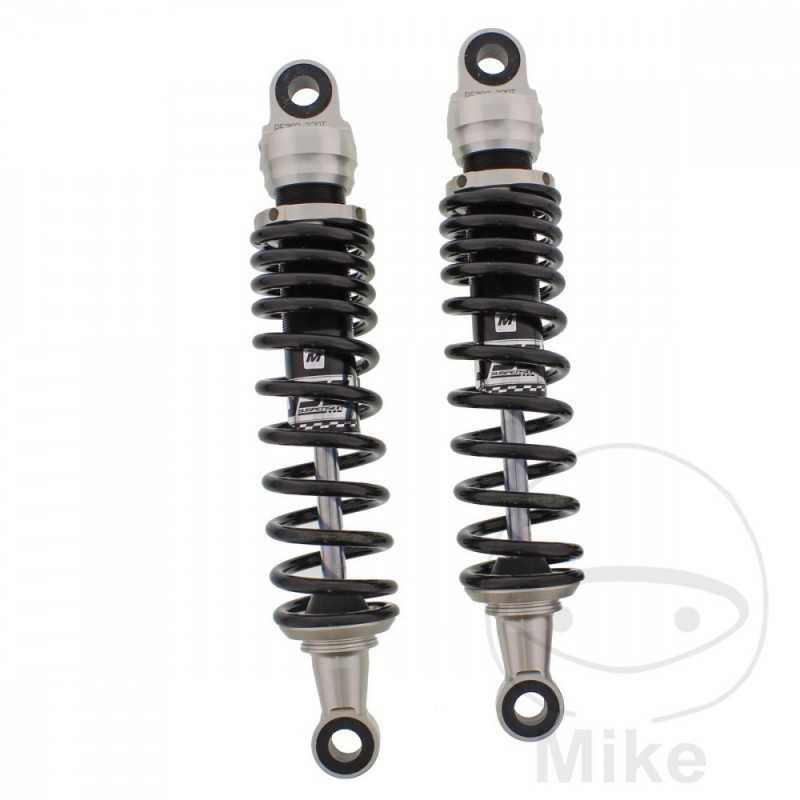

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.09

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW R 45 N 27 CV, 20 kw 2cil. 248 0352 Bastidores: 6 320 001-6 322 488 1978
BMW R 45 N 27 CV, 20 kw 2cil. 248 0352 Bastidores: 6 322 489-6 326 598 1979
BMW R 45 N 27 CV, 20 kw 2cil. 248 0352 Bastidores: 6 326 599-6 329 475 1980
BMW R 45 N 27 CV, 20 kw 2cil. 248 0355 Bastidores: 6 260 001-6 266 303 1981-1985
BMW R 45 S 35 CV, 26 kw 2cil. 248 0351 Bastidores: 6 300 001-6 302 764 1978
BMW R 45 S 35 CV, 26 kw 2cil. 248 0351 Bastidores: 6 302 765-6 305 582 1979
BMW R 45 S 35 CV, 26 kw 2cil. 248 0351 Bastidores: 6 305 583-6 306 430 1980
BMW R 45 S 35 CV, 26 kw 2cil. 248 0354 Bastidores: 6 270 001-6 275 540 1981-1985
BMW R 50 /5 32 CV, 24 kw 2cil. R50/5 0240 Bastidores: 2 900 001-2 903 623 1969-1971
BMW R 50 /5 32 CV, 24 kw 2cil. R50/5 0240 Bastidores: 2 903 624-2 910 000 1972-1973
BMW R 60 /5 40 CV, 29 kw 2cil. R60/5 0250 Bastidores: 2 930 001-2 938 704 1969-1971
BMW R 60 /5 40 CV, 29 kw 2cil. R60/5 0250 Bastidores: 2 938 705-2 950 000 1972-1973
BMW R 65 1Serie 45 CV, 33 kw 2cil. 248 0353 Bastidores: 6 340 001-6 342 274 1978
BMW R 65 1Serie 45 CV, 33 kw 2cil. 248 0353 Bastidores: 6 342 275-6 346 334 1979
BMW R 65 1Serie 45 CV, 33 kw 2cil. 248 0353 Bastidores: 6 346 335-6 349 336 1980
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 310 001-6 311 755 1980
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 311 756-6 316 902 1981
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 316 903-6 410 483 1982
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 410 484-6 412 338 1983
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 412 339-6 413 039 1984
BMW R 65 2Serie 50 CV, 37 kw 2cil. 248 0358 Bastidores: 6 413 040-6 413 588 1985
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 350 001-6 351 657 1981
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 351 658-6 353 985 1982
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 353 986-6 354 307 1983
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 354 308-6 354 565 1984
BMW R 65 LS 50 CV, 37 kw 2cil. 248 0359 Bastidores: 6 354 566-6 354 679 1985
BMW R 75 /5 50 CV, 37 kw 2cil. R75/5 0260 Bastidores: 2 970 001-2 982 737 1969-1971
BMW R 75 /5 50 CV, 37 kw 2cil. R75/5 0260 Bastidores: 2 982 738-3 000 000 1972-1973
BMW R 75 /5 50 CV, 37 kw 2cil. R75/5 0260 Bastidores: 4 000 001-4 010 000 1972-1973
