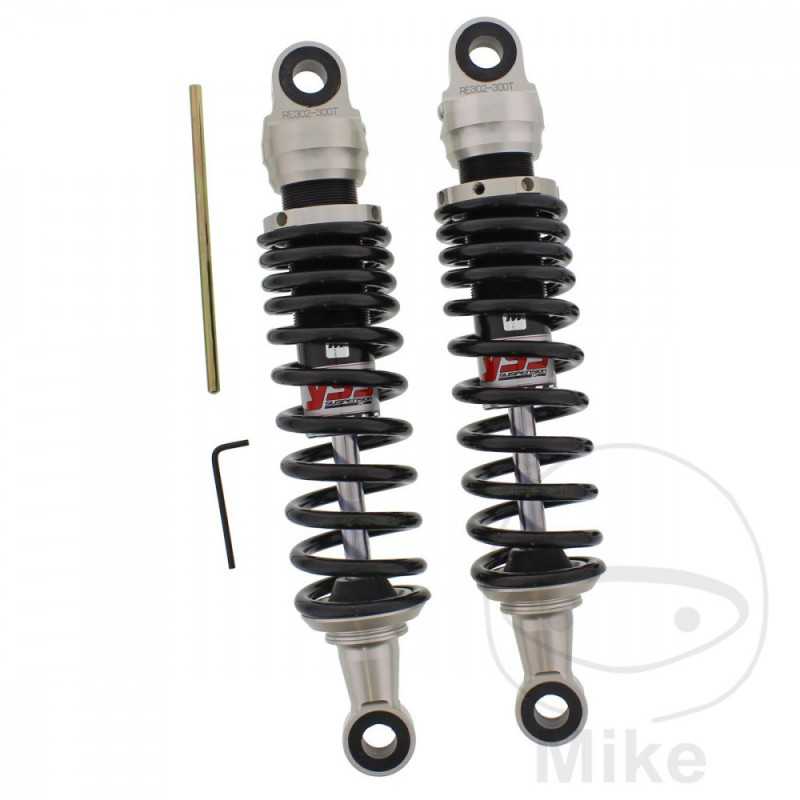

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.05

Milled aluminum body, adjustable spring strut with spring preload.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 300 mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 1 Bastidores: ER500AAA henceforth00001-ER500AAA henceforth15000 1997
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 2 Bastidores: ER500AAA henceforth15001-ER500AAA henceforth28000 1998
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 3 Bastidores: ER500AAA henceforth28001-ER500AAA henceforth41000 1999
Kawasaki ER 500 A Twister 34 CV, 25 kw 2cil. ER500AAA 4 Bastidores: ER500AAA henceforth41001-ER500AAA-999999 2000
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 1 Bastidores: ER500ABA henceforth00001-ER500ABA henceforth15000 1997
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 2 Bastidores: ER500ABA henceforth15001-ER500ABA henceforth28000 1998
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 3 Bastidores: ER500ABA henceforth28001-ER500ABA henceforth41000 1999
Kawasaki ER 500 B Twister 50 CV, 37 kw 2cil. ER500ABA 4 Bastidores: ER500ABA henceforth41001-ER500ABA-999999 2000
