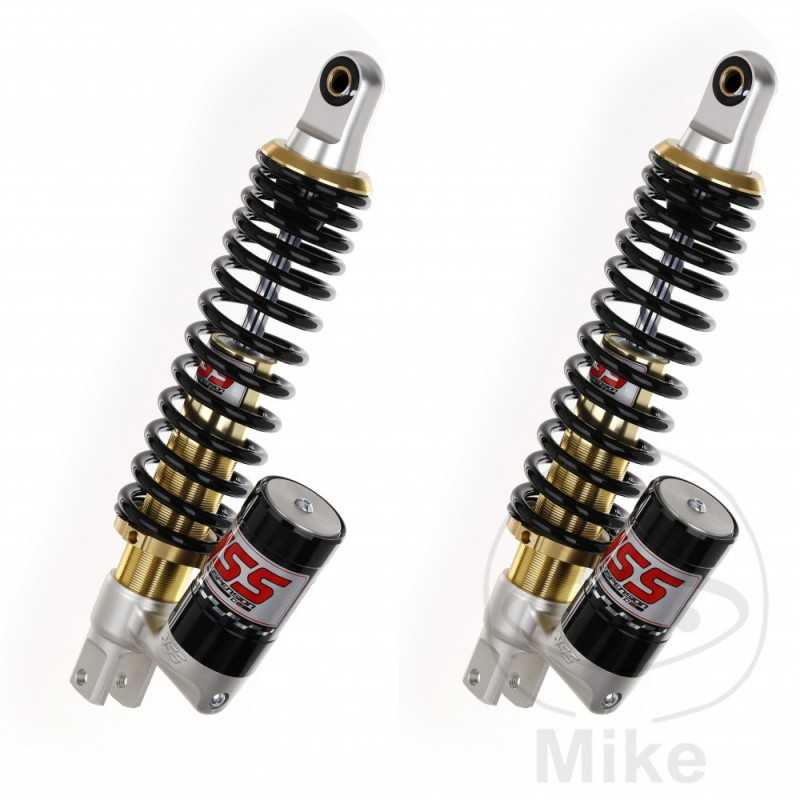

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.02.04

Milled aluminum body, adjustable spring strut with spring preload.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 300 mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 2 Bastidores: ZDC JF10A henceforth2F000001-ZDC JF10A henceforth2F049999 2002
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 3 Bastidores: ZDC JF10A henceforth3F050001-ZDC JF10A henceforth3F099999 2003
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 4 Bastidores: ZDC JF10A henceforth4F070001-- 2004-2006
Honda SES 150 Dylan 1cil. KF05A 2 Bastidores: ZDC KF05A henceforth2F000001-ZDC KF05A henceforth2F049999 2002
Honda SES 150 Dylan 1cil. KF05A 3 Bastidores: ZDC KF05A henceforth3F050001-ZDC KF05A henceforth3F099999 2003
Honda SES 150 Dylan 1cil. KF05A 4 Bastidores: ZDC KF05A henceforth4F070001-- 2004
Honda SH 125 DT 13,6 CV, 10 kw 1cil. JF09A 1 Bastidores: ZDC JF09A henceforth1F000001-ZDC JF09A henceforth1F099999 2001-2002
Honda SH 125 DT 13,6 CV, 10 kw 1cil. JF09A 3 Bastidores: ZDC JF09A henceforth3F050001-ZDC JF09A henceforth3F099999 2003
Honda SH 125 DT 13,6 CV, 10 kw 1cil. JF09A 4 Bastidores: ZDC JF09A henceforth4F090001-- 2004
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 5 Bastidores: ZDC JF14A henceforth5F000001-ZDC JF14A henceforth5F999999 2005
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 6 Bastidores: ZDC JF14A henceforth6F050001-ZDC JF14A henceforth6F999999 2006
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 7 Bastidores: ZDC JF14A henceforth7F150001-ZDC JF14A henceforth7F999999 2007
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 8 Bastidores: ZDC JF14A henceforth8F200001-- 2008
Honda SH 150 Scooby 15,8 CV, 11,6 kw 1cil. KF04A 1 Bastidores: ZDC KF04A henceforth1F000001-ZDC KF04A henceforth1F099999 2001-2002
Honda SH 150 Scooby 15,8 CV, 11,6 kw 1cil. KF04A 3 Bastidores: ZDC KF04A henceforth3F050001-ZDC KF04A henceforth3F099999 2003
Honda SH 150 Scooby 15,8 CV, 11,6 kw 1cil. KF04A 4 Bastidores: ZDC KF04A henceforth4F090001-- 2004
