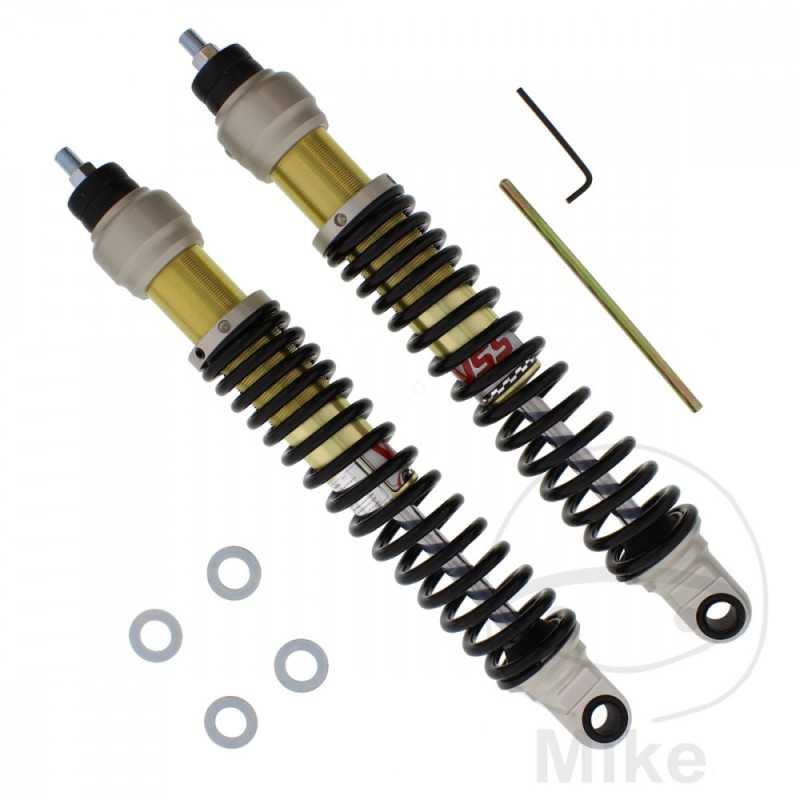

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.01.19

Milled aluminum body, adjustable spring preload.

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa GT 125 L Granturismo 15 CV, 11 kw 1cil. M31100 Bastidores: ZAPM31100 henceforth0001001-ZAPM31100 henceforth0017186 2004-2005
Vespa GT 125 L Granturismo 15 CV, 11 kw 1cil. M31101 Bastidores: ZAPM31101 henceforth001001-- 2006-2007
Vespa GT 200 L Granturismo 20 CV, 14,7 kw 1cil. M31200 Bastidores: ZAPM31200 henceforth0001001-- 2004-2006
Vespa GTS 125 14,3 CV, 10,5 kw 1cil. M31300 Bastidores: ZAPM31300 henceforth1000001-- 2007-2009
Vespa GTS 125 ie IGET ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Super ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super Notte ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Super Notte ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super Sport ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Super Sport ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super Tech ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Touring ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Touring ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Yacht Club ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Yacht Club ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie Super 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2010-2016
Vespa GTS 125 ie Super ABS 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2014-2016
Vespa GTS 125 ie Super Sport 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2011-2013
Vespa GTS 125 ie Super Sport ABS 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2014-2016
Vespa GTS 150 ie IGET ABS 15 CV, 11 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 150 ie IGET Super ABS 15 CV, 11 kw 1cil. MA3100/3200 Bastidores: --- 2017-2019
Vespa GTS 250 ie 21,3 CV, 15,7 kw 1cil. M45100 Bastidores: ZAPM45100 henceforth0001001-- 2006-2011
Vespa GTS 250 ie ABS 21,3 CV, 15,7 kw 1cil. M45101 Bastidores: ZAPM45101 henceforth0001001-- 2006-2009
Vespa GTS 300 HPE ie ABS 23,8 CV, 17,5 kw 1cil. MA3600 Bastidores: ZAPMA3600 henceforth0001001-- 2019-2020
Vespa GTS 300 HPE ie Super ABS 23,8 CV, 17,5 kw 1cil. MA3600 Bastidores: ZAPMA3600 henceforth0001001-- 2019-2020
Vespa GTS 300 HPE ie Super Sport ABS 23,8 CV, 17,5 kw 1cil. MA3600 Bastidores: ZAPMA3600 henceforth0001001-- 2019-2020
Vespa GTS 300 HPE ie Super Tech ABS 23,8 CV, 17,5 kw 1cil. MA3600 Bastidores: ZAPMA3600 henceforth0001001-- 2019-2020
Vespa GTS 300 HPE ie Touring ABS 23,8 CV, 17,5 kw 1cil. MA3600 Bastidores: ZAPMA3600 henceforth0001001-- 2019-2020
Vespa GTS 300 ie 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2012-2014
Vespa GTS 300 ie ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2017-2018
Vespa GTS 300 ie ABS 21,5 CV, 15,8 kw 1cil. M45202 Bastidores: ZAPM45202 henceforth0001001-- 2016
Vespa GTS 300 ie Super 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2010-2016
Vespa GTS 300 ie Super 21,8 CV, 16 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2008-2009
Vespa GTS 300 ie Super ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2017-2018
Vespa GTS 300 ie Super ABS 21,5 CV, 15,8 kw 1cil. M45202 Bastidores: ZAPM45202 henceforth0001001-- 2014-2016
Vespa GTS 300 ie Super Notte ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2017-2019
Vespa GTS 300 ie Super Sport 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2010-2013
Vespa GTS 300 ie Super Sport ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM4520 henceforth00001001-- 2017-2018
Vespa GTS 300 ie Super Sport ABS 21,5 CV, 15,8 kw 1cil. M45202 Bastidores: ZAPM45202 henceforth0001001-- 2014-2016
Vespa GTS 300 ie Touring 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2012-2014
Vespa GTS 300 ie Touring ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM4520 henceforth00001001-- 2017-2018
Vespa GTS 300 ie Touring ABS 21,5 CV, 15,8 kw 1cil. M45202 Bastidores: ZAPM45202 henceforth0001001-- 2014-2016
Vespa GTS 300 ie Yacht Club ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM4520 henceforth00001001-- 2017-2019
Vespa GTV 125 14,3 CV, 10,5 kw 1cil. M31301 Bastidores: ZAPM31301 henceforth0001001-- 2007-2009
Vespa GTV 250 ie 21,3 CV, 15,7 kw 1cil. M45102 Bastidores: ZAPM45102 henceforth0001001-- 2007-2011
Vespa GTV 300 ie Sei Giorni ABS 21,5 CV, 15,8 kw 1cil. MA3302 Bastidores: ZAPM43302 henceforth0001001-- 2017-2018
Vespa GTV 300 ie Sei Giorni ABS 21,5 CV, 15,8 kw 1cil. MA3602 Bastidores: ZAPMA3602 henceforth0000001-- 2019
Vespa GTV 300 ie Via Montenapoleone 21,5 CV, 15,8 kw 1cil. M45201 Bastidores: ZAPM45201 henceforth0001001-- 2010-2011
Vespa GTV 300 ie Vie Della Moda 21,5 CV, 15,8 kw 1cil. M4520 Bastidores: ZAPM4520 henceforth00001001-- 2012-2013
