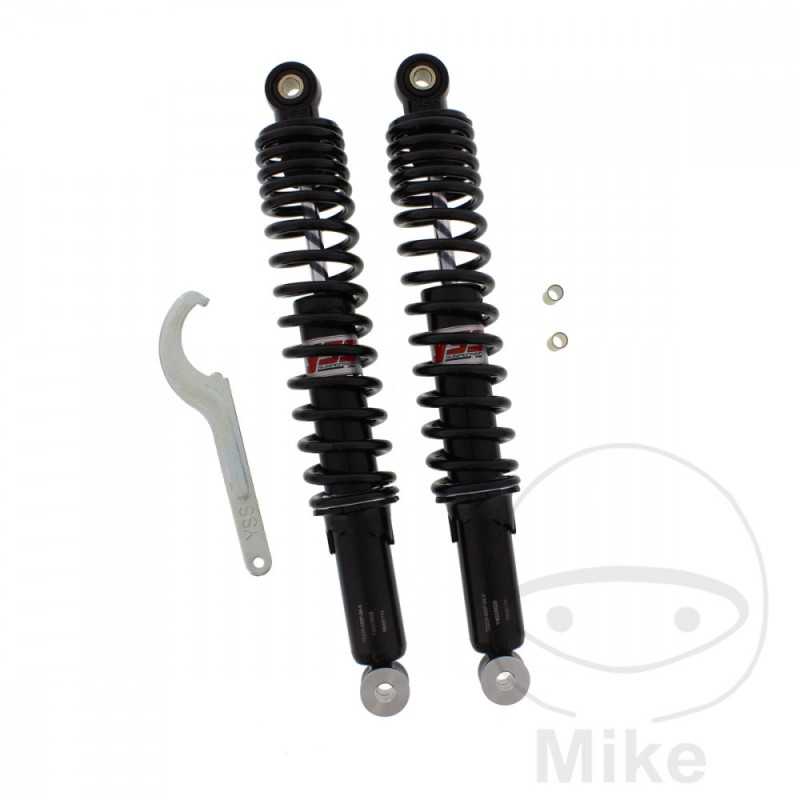

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.01.16

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 8 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Sport City 125 12,2 CV, 9 kw 1cil. VB000 Bastidores: --- 2004-2006
Aprilia Sport City 125 12,2 CV, 9 kw 1cil. VB002 Bastidores: --- 2007-2008
Aprilia Sport City 125 Cube 12,2 CV, 9 kw 1cil. VBE00 Bastidores: --- 2009-2011
Aprilia Sport City 200 18 CV, 13 kw 1cil. VBA00 Bastidores: --- 2006-2007
Aprilia Sport City 200 18 CV, 13 kw 1cil. VBA01 Bastidores: --- 2008
Aprilia Sport City 250 ie 22,4 CV, 16,5 kw 1cil. VBB00 Bastidores: --- 2007-2008
Aprilia Sport City 300 ie Cube 22 CV, 16,1 kw 1cil. VBL00 Bastidores: --- 2012-2013
Aprilia Sport City 300 ie Cube 23 CV, 17 kw 1cil. VBL00 Bastidores: --- 2009-2011
