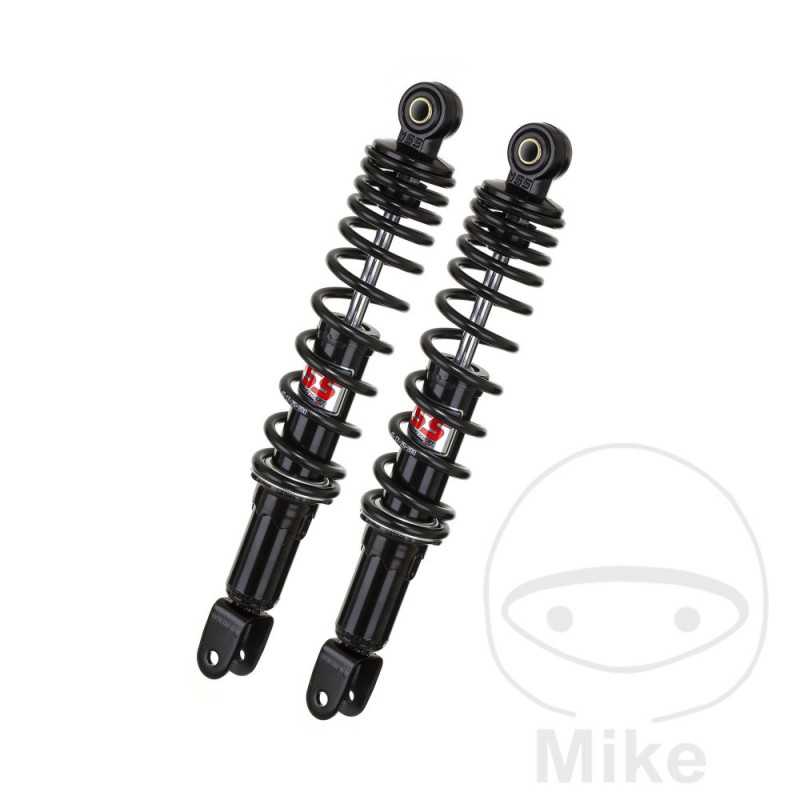

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.01.07

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 330MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kymco Agility 125 R12 9,4 CV, 6,9 kw 1cil. - Bastidores: --- 2012-2016
Kymco Agility 125 R12 9,4 CV, 6,9 kw 1cil. U62000 Bastidores: LC2U62000-- 2006-2007
Kymco Agility 125 R12 MMC 9,4 CV, 6,9 kw 1cil. U62001 Bastidores: LC2U62001-- 2008-2011
Kymco Agility 125 R12 One 9,4 CV, 6,9 kw 1cil. U620018 Bastidores: LC2U620018-- 2008-2009
Kymco Agility 125 R16 City 9,5 CV, 7 kw 1cil. C20000 Bastidores: LC2C20000-- 2010-2017
Kymco Agility 125 R16 City 9,5 CV, 7 kw 1cil. C20000 KL25BA Bastidores: LC2C20000-- 2008
Kymco Agility 125 R16 City 9,5 CV, 7 kw 1cil. C20000 KL25BD Bastidores: LC2C20000-- 2009
Kymco Agility 125 RS R12 9,4 CV, 6,9 kw 1cil. U62011 Bastidores: LC2U62011-- 2009-2016
