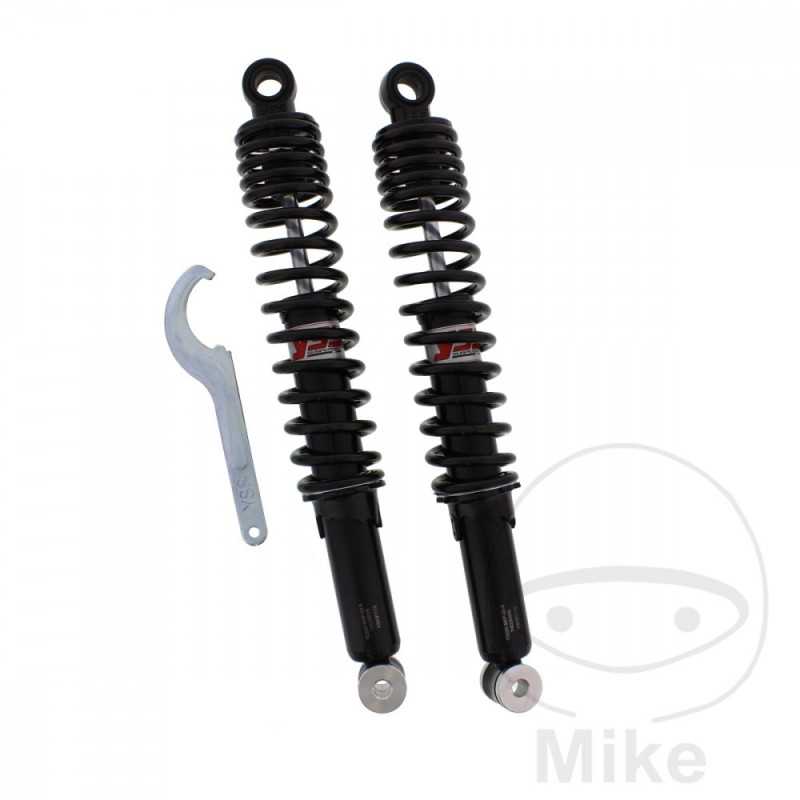

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.01.05

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 360MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio X7 125 14 CV, 10,3 kw 1cil. M62100 Bastidores: ZAPM62100 henceforth0001001-- 2008
Piaggio X7 125 ie Evo 15 CV, 11 kw 1cil. M62101 Bastidores: ZAPM62101 henceforth0001001-- 2009-2012
Piaggio X7 125 ie Evo 15 CV, 11 kw 1cil. M62101 Bastidores: ZAPM62101 henceforth0001001-- 2014-2014
Piaggio X7 250 ie 22,2 CV, 16,3 kw 1cil. M62200 Bastidores: ZAPM62200 henceforth0001001-- 2008-2010
Piaggio X8 125 15 CV, 11 kw 1cil. M36200 Bastidores: ZAPM36200 henceforth0001001-ZAPM36200 henceforth0007986 2004
Piaggio X8 125 15 CV, 11 kw 1cil. M36301 Bastidores: ZAPM36301 henceforth0001001-ZAPM36301 henceforth0014608 2005-2007
Piaggio X8 200 19 CV, 13,8 kw 1cil. M36200 Bastidores: ZAPM36200 henceforth0001001-ZAPM36200 henceforth0007986 2004
Piaggio X8 200 19 CV, 13,8 kw 1cil. M36200 Bastidores: ZAPM36200 henceforth0007987-ZAPM36200 henceforth0015761 2005
Piaggio X8 250 ie 21,2 CV, 15,6 kw 1cil. M36400 Bastidores: ZAPM36400 henceforth0001001-- 2006-2008
Piaggio X8 400 ie 33,3 CV, 24,5 kw 1cil. M52100 Bastidores: ZAPM52100 henceforth0001001-- 2007-2008
Piaggio XEvo 125 15 CV, 11 kw 1cil. M36601 Bastidores: ZAPM36601 henceforth0001001-- 2007-2016
Piaggio XEvo 250 ie 21,7 CV, 16 kw 1cil. - Bastidores: --- 2015-2016
Piaggio XEvo 250 ie 21,7 CV, 16 kw 1cil. M36401 Bastidores: --- 2007-2010
Piaggio XEvo 400 ie 33,3 CV, 24,5 kw 1cil. M52101 Bastidores: ZAPM52101 henceforth0001003-- 2007-2012
