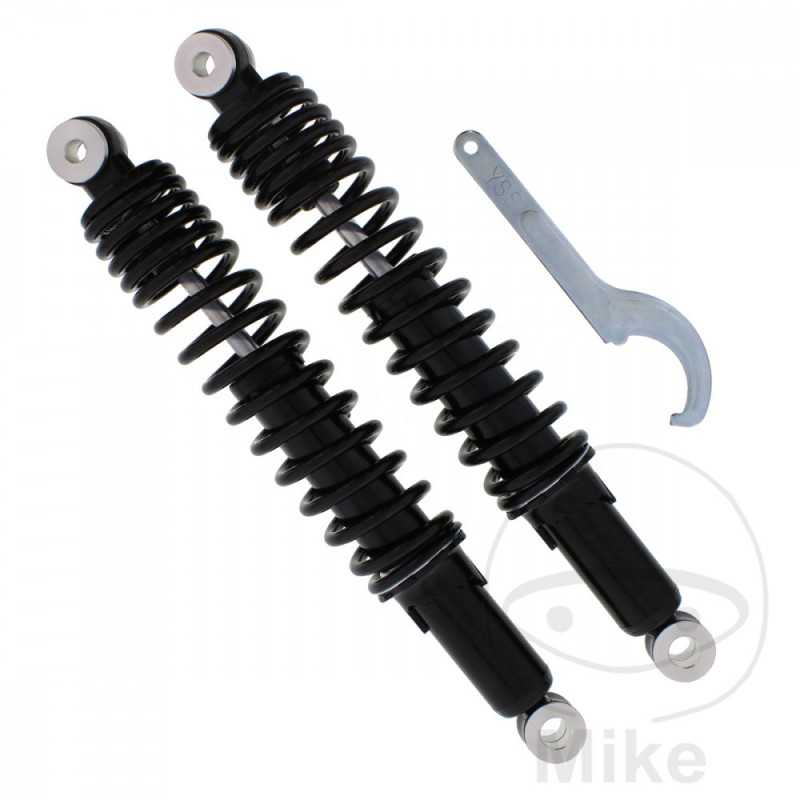

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.00.89

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 220 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Beverly 125 GT RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 125 GT RST 15 CV, 11 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth1001001-- 2005-2008
Piaggio Beverly 125 ie 15 CV, 11 kw 1cil. M69100 Bastidores: ZAPM69100 henceforth0001001-- 2010-2016
Piaggio Beverly 125 RST 14,8 CV, 10,9 kw 1cil. M28400 Bastidores: ZAPM28400 henceforth0001001-ZAPM28400 henceforth1001000 2004
Piaggio Beverly 250 ie Cruiser 22 CV, 16 kw 1cil. M28802 Bastidores: ZAPM28802 henceforth0001001-- 2007-2008
Piaggio Beverly 250 ie Tourer 22,5 CV, 16,5 kw 1cil. M28801 Bastidores: ZAPM28801 henceforth0001001-- 2008-2009
Piaggio Beverly 300 ie 22,2 CV, 16,3 kw 1cil. M69200 Bastidores: ZAPM69200 henceforth0001001-- 2012-2015
