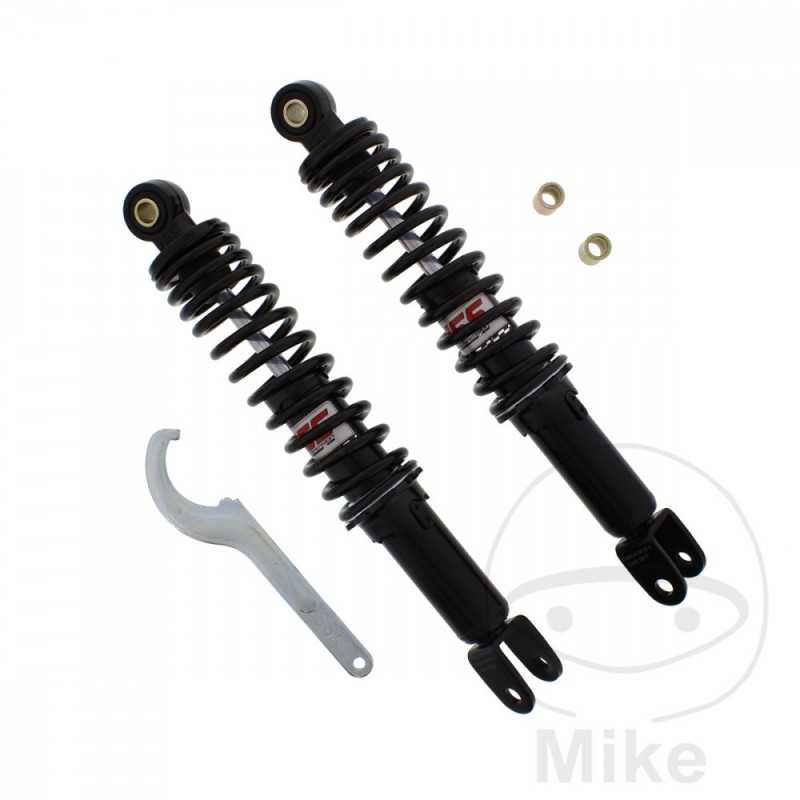

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.00.82

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 315MM
LOWER FIXING: FORK
FORK WIDTH: 22 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 170 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kymco Grand Dink 250 19,7 CV, 14,5 kw 1cil. S41000 Bastidores: RFBS41000-- 2001-2004
Kymco Grand Dink 250 19,7 CV, 14,5 kw 1cil. S41001 Bastidores: RFBS41001-- 2005-2006
