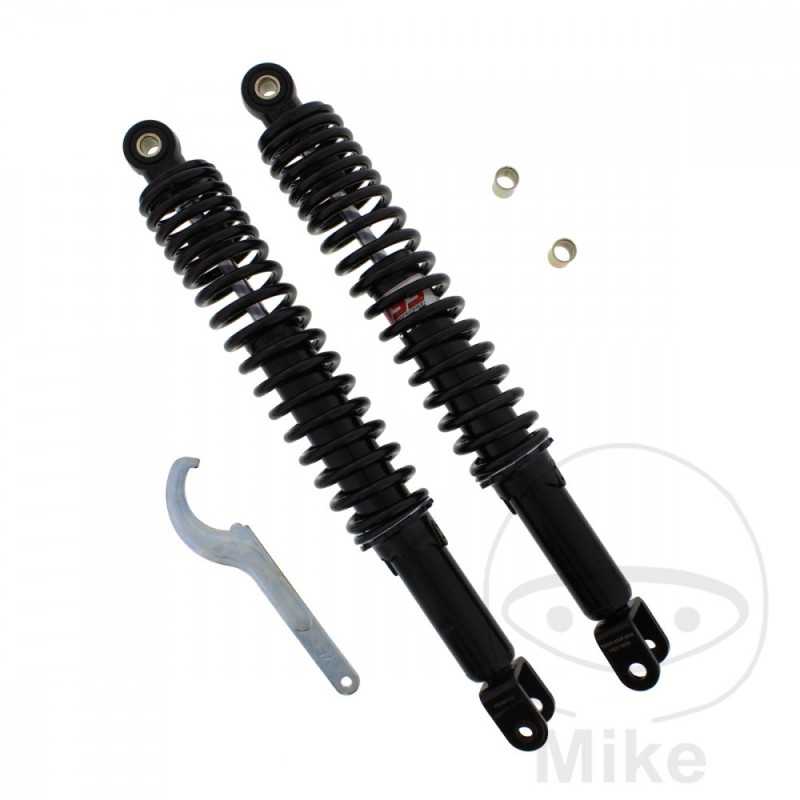

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.00.80

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 400MM
LOWER FIXING: FORK
FORK WIDTH: 26 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NSS 250 A Forza ABS 19 CV, 14,2 kw 2cil. MF10B 8 Bastidores: JH2 MF10B-8K000001-- 2008-2011
Honda NSS 250 EX Forza ABS 19 CV, 14,2 kw 2cil. MF08B 5 Bastidores: JH2 MF08B-5K000001-JH2 MF08B-5K999999 2005-2006
Honda NSS 250 X Forza 19 CV, 14,2 kw 2cil. MF08A 7 Bastidores: JH2 MF08A-7K100001-- 2007-2013
Honda SH 300 A i ABS 27 CV, 20 kw 1cil. NF02B 7 Bastidores: ZDC NF02B henceforth7F000001-ZDC NF02B henceforth7F999999 2007
Honda SH 300 A i ABS 27 CV, 20 kw 1cil. NF02B 8 Bastidores: ZDC NF02B henceforth8F050001-- 2008
Honda SH 300 A i ABS 27 CV, 20 kw 1cil. NF02B 9 Bastidores: ZDC NF02B henceforth9F080001-ZDC NF02B henceforth9F089999 2009
Honda SH 300 A i ABS 27 CV, 20 kw 1cil. NF02B A Bastidores: ZDC NF02B-AF110001-- 2010
Honda SH 300 A i ABS 27 CV, 20 kw 1cil. NF02D B Bastidores: ZDC NF02D henceforthBF200001-- 2011
Honda SH 300 A i ABS Top Case 27 CV, 20 kw 1cil. NF02D C Bastidores: ZDC NF02D henceforthCF225001-- 2012
Honda SH 300 A i ABS Top Case 27 CV, 20 kw 1cil. NF02D D Bastidores: ZDC NF02D-DF250001-ZDC NF02D-DF259999 2013
Honda SH 300 A i ABS Top Case 27 CV, 20 kw 1cil. NF02D E Bastidores: ZDC NF02D-EF275001-- 2014-2015
Honda SH 300 i 27 CV, 20 kw 1cil. NF02A 8 Bastidores: ZDC NF02A henceforth8F050001-- 2008
Honda SH 300 i 27 CV, 20 kw 1cil. NF02A 9 Bastidores: ZDC NF02A henceforth9F080001-ZDC NF02A henceforth9F089999 2009
Honda SH 300 i 27 CV, 20 kw 1cil. NF02A A Bastidores: ZDC NF02A-AF110001-- 2010
