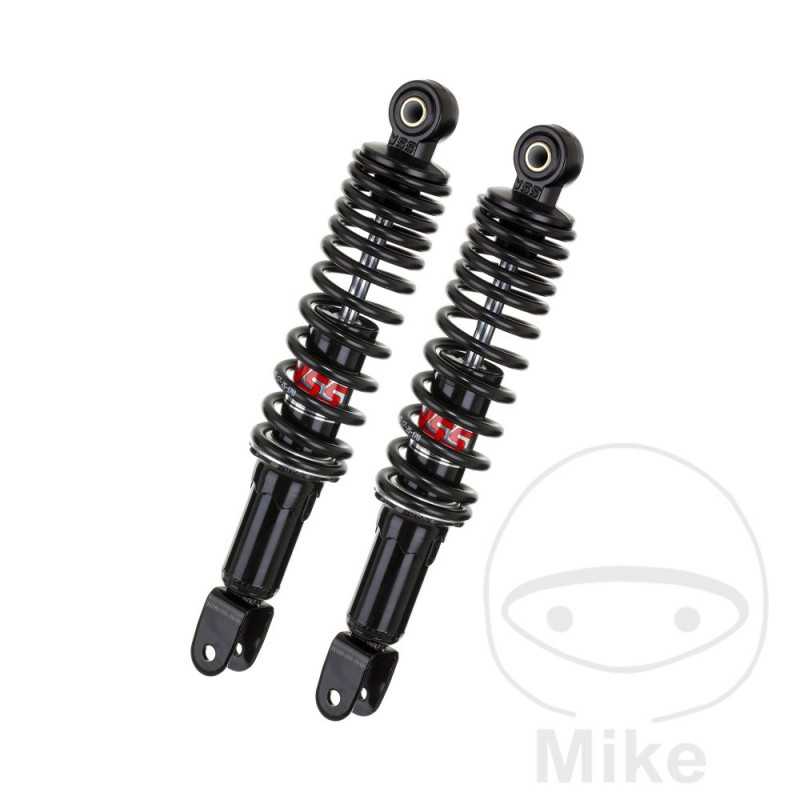

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.00.79

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 300 mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 170 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF23B A Bastidores: ZDC JF23B-AF030001-- 2010
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF23B B Bastidores: ZDC JF23B henceforthBF100001-- 2011
Honda SH 125 i DD 13,6 CV, 10 kw 1cil. JF23B C Bastidores: ZDC JF23B henceforthCF150001-- 2012
