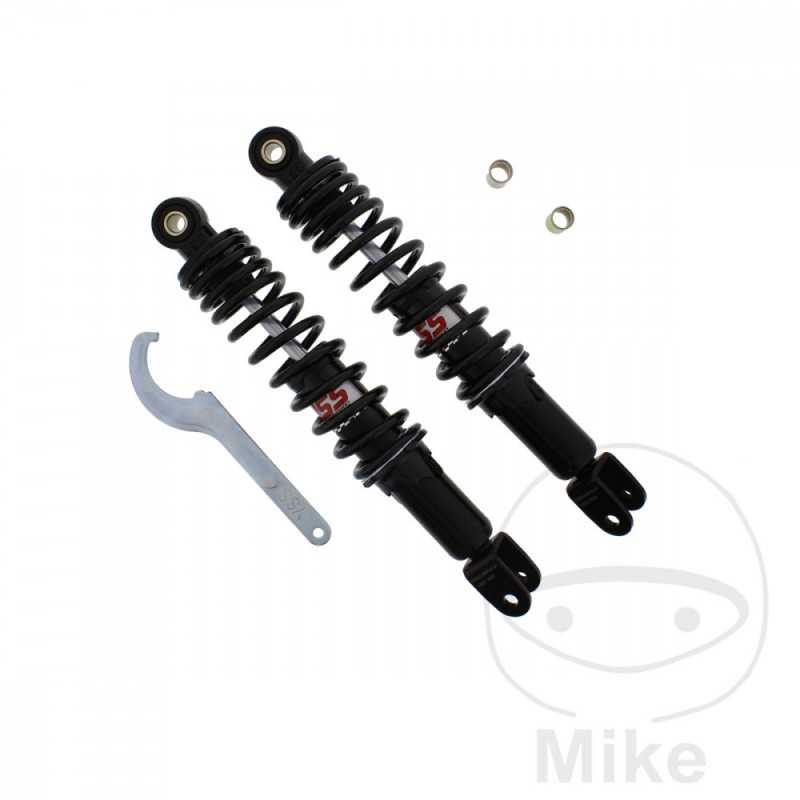

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.00.78

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 300 mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 170 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 2 Bastidores: ZDC JF10A henceforth2F000001-ZDC JF10A henceforth2F049999 2002
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 3 Bastidores: ZDC JF10A henceforth3F050001-ZDC JF10A henceforth3F099999 2003
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 4 Bastidores: ZDC JF10A henceforth4F070001-- 2004-2006
Honda SH 125 DT 13,6 CV, 10 kw 1cil. JF09A 1 Bastidores: ZDC JF09A henceforth1F000001-ZDC JF09A henceforth1F099999 2001-2002
Honda SH 125 DT 13,6 CV, 10 kw 1cil. JF09A 3 Bastidores: ZDC JF09A henceforth3F050001-ZDC JF09A henceforth3F099999 2003
Honda SH 125 DT 13,6 CV, 10 kw 1cil. JF09A 4 Bastidores: ZDC JF09A henceforth4F090001-- 2004
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 5 Bastidores: ZDC JF14A henceforth5F000001-ZDC JF14A henceforth5F999999 2005
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 6 Bastidores: ZDC JF14A henceforth6F050001-ZDC JF14A henceforth6F999999 2006
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 7 Bastidores: ZDC JF14A henceforth7F150001-ZDC JF14A henceforth7F999999 2007
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 8 Bastidores: ZDC JF14A henceforth8F200001-- 2008
Honda SH 150 i 15,5 CV, 11,4 kw 1cil. KF08A 5 Bastidores: ZDC KF08A henceforth5F000001-ZDC KF08A henceforth5F999999 2005
Honda SH 150 i 15,5 CV, 11,4 kw 1cil. KF08A 6 Bastidores: ZDC KF08A henceforth6F050001-ZDC KF08A henceforth6F999999 2006
Honda SH 150 i 15,5 CV, 11,4 kw 1cil. KF08A 7 Bastidores: ZDC KF08A henceforth7F150001-ZDC KF08A henceforth7F999999 2007
Honda SH 150 i 15,5 CV, 11,4 kw 1cil. KF08A 8 Bastidores: ZDC KF08A henceforth8F200001-- 2008
Honda SH 150 Scooby 15,8 CV, 11,6 kw 1cil. KF04A 1 Bastidores: ZDC KF04A henceforth1F000001-ZDC KF04A henceforth1F099999 2001-2002
Honda SH 150 Scooby 15,8 CV, 11,6 kw 1cil. KF04A 3 Bastidores: ZDC KF04A henceforth3F050001-ZDC KF04A henceforth3F099999 2003
Honda SH 150 Scooby 15,8 CV, 11,6 kw 1cil. KF04A 4 Bastidores: ZDC KF04A henceforth4F090001-- 2004
SYM HD 200 DD 15,9 CV, 11,7 kw 1cil. LH18W5-6-SE Bastidores: --- 2007-2008
SYM HD 200 DD ie Evo 15,7 CV, 11,5 kw 1cil. LH18W7-6 Bastidores: --- 2008-2010
SYM HD 200 DT 15,7 CV, 11,5 kw 1cil. LH18W-6 Bastidores: --- 2004-2009
