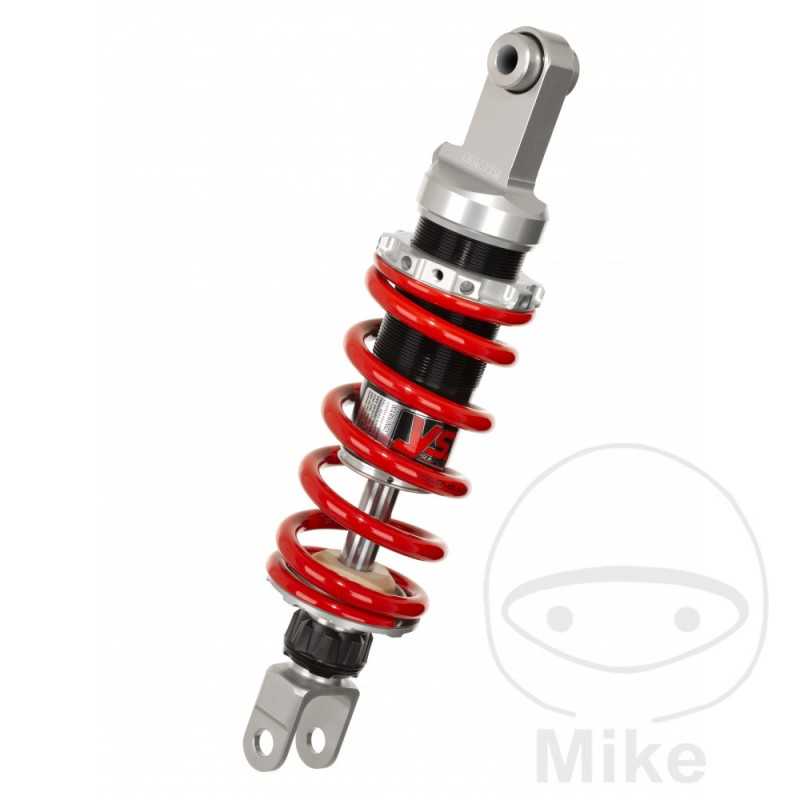

YSS SUSPENSION Adjustable rear suspension shock absorber 789.51.13

Milled aluminum body, adjustable spring preload and rebound shock (30 clicks).

The spring preload is locked by a set screw.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 325MM
LOWER FIXING: FORK
FORK WIDTH: 30 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 65
SPRING LENGTH: 165 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XG 250 Tricker 19 CV, 14 kw 1cil. DG141 4D61 Bastidores: DG141 henceforth00301-- 2005-2006
Yamaha XG 250 Tricker 19 CV, 14 kw 1cil. DG141 4D62 Bastidores: DG141 henceforth00371-- 2005-2006
