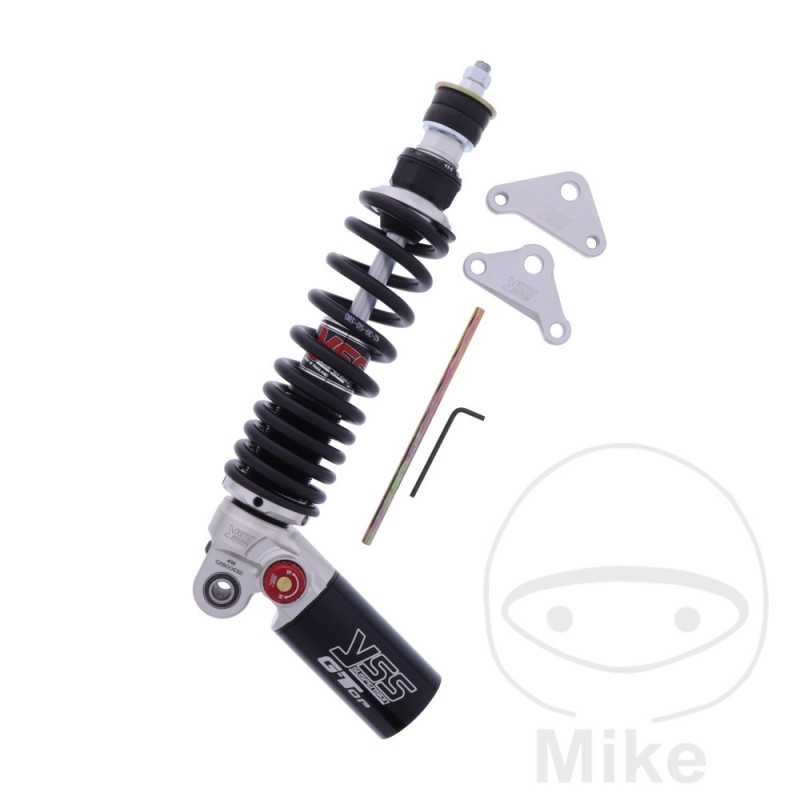

YSS SUSPENSION Adjustable rear suspension shock absorber 789.35.03

TYPE: GAS PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 275MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
SETTINGS: PRESSURE LEVEL
SPRING FEATURE: 30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 42 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa ET4 125 LEADER 11 CV, 8 kw 1cil. M19000 Bastidores: ZAPM19000--- 2000-2005
Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44100 Bastidores: ZAPM44100 henceforth0001001-ZAPM44100 henceforth0031637 2005-2007
Vespa LX 125 2V ie 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 henceforth0001001-- 2010-2013
Vespa LX 125 2V ie Touring 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 henceforth0001001-- 2010-2013
Vespa LX 125 3V ie 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 henceforth0001001-- 2012-2014
Vespa LX 125 3V ie Touring 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 henceforth0001001-- 2012-2014
Vespa LX 150 11,7 CV, 8,6 kw 1cil. M44200 Bastidores: ZAPM44200 henceforth0001001-- 2005-2006
Vespa LX 150 11,7 CV, 8,6 kw 1cil. M44400 Bastidores: ZAPM44400 henceforth0001001-ZAPM44400 henceforth0022621 2006-2008
Vespa LX 150 2V ie 12,1 CV, 8,9 kw 1cil. M68200 Bastidores: ZAPM68200 henceforth0001001-- 2009-2012
Vespa LX 150 2V ie Touring 12,1 CV, 8,9 kw 1cil. M68100 Bastidores: ZAPM68100 henceforth0001001-- 2010-2012
Vespa LXV 125 10,4 CV, 7,65 kw 1cil. M44301 Bastidores: ZAPM44301 henceforth0001001-- 2007-2009
Vespa LXV 125 ie 10,7 CV, 7,9 kw 1cil. M68102 Bastidores: ZAPM68102 henceforth0001001-- 2010-2013
Vespa LXV 125 ie Vie della Moda 10,7 CV, 7,9 kw 1cil. M68102 Bastidores: ZAPM68102 henceforth0001001-- 2012-2013
Vespa S 125 10,4 CV, 7,7 kw 1cil. M44302 Bastidores: ZAPM44302 henceforth0001001-- 2007-2009
Vespa S 125 2V ie /College 10,7 CV, 7,9 kw 1cil. M68101 Bastidores: ZAPM68101 henceforth0001001-- 2010-2014
Vespa S 125 3V ie 11,6 CV, 8,5 kw 1cil. M68301 Bastidores: ZAPM68301 henceforth0001001-- 2012-2014
