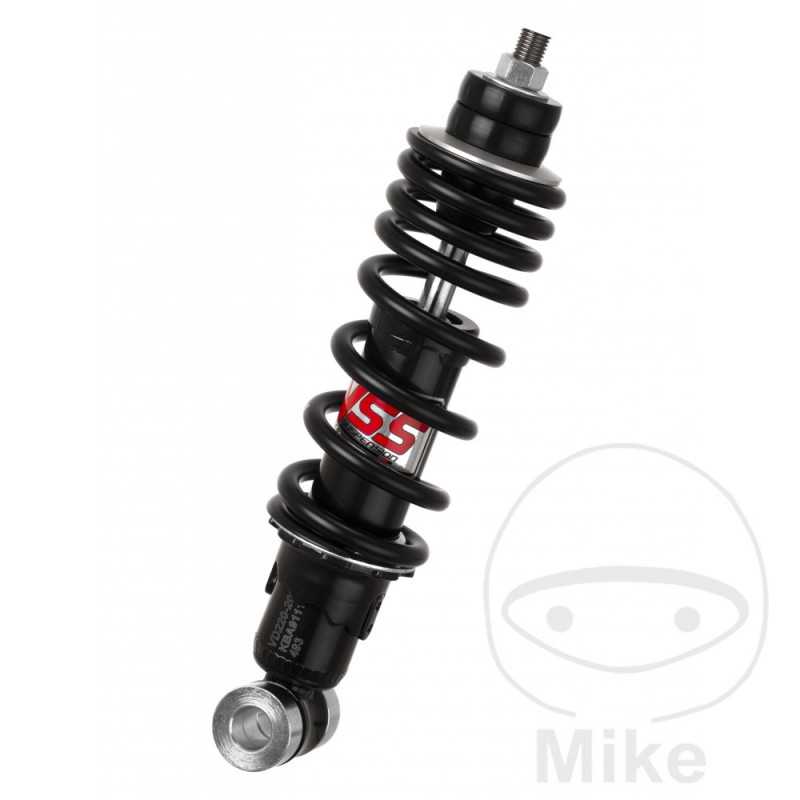

YSS SUSPENSION Adjustable rear suspension shock absorber 789.23.70

TYPE: OIL PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 8 MM
Length: 170mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 60
SPRING LENGTH: 100 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM
Length: 185 mm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa N 50 Spezial 2 intermitentes 1,5 CV, 1,1 kw 1cil. V5B3T Bastidores: V5B3T-1101-V5B3T-565056 1975-1983
Vespa N 50 Spezial 4 intermitentes 1,5 CV, 1,1 kw 1cil. V5B3T Bastidores: V5B3T-199603-- 1978-1983
Vespa N 50 Spezial 4-marchas 1,5 CV, 1,1 kw 1cil. V5B3T Bastidores: V5B3T-1101-V5B3T-564986 1975-1983
Vespa N 50 Spezial 4-marchas reforzada 1,5 CV, 1,1 kw 1cil. V5B3T Bastidores: V5B3T-72201-- 1975-1980
Vespa V 50 arranque eléctrico 10 pulgadas ruedas 4 marchas 1,5 CV, 1,1 kw 1cil. V5B4T Bastidores: V5B4T-1001-V5B4T-1533 1975-1976
Vespa V 50 arranque eléctrico 10 pulgadas ruedas 4 marchas y motor reforzado 1,5 CV, 1,1 kw 1cil. V5B4T Bastidores: V5B4T-1308-- 1975
Vespa V 50 L 1,5 CV, 1,1 kw 1cil. V5A1T Bastidores: V5A1T-500001-V5A1T-530932 1966-1967
Vespa V 50 L 1,5 CV, 1,1 kw 1cil. V5A1T Bastidores: V5A1T-540001-V5A1T-637063 1967-1970
Vespa V 50 N 1,5 CV, 1,1 kw 1cil. V5A1T Bastidores: V5A1T-92877-V5A1T-283299 1965-1971
Vespa V 50 R 1,5 CV, 1,1 kw 1cil. V5A1T Bastidores: V5A1T-700001-V5A1T-938761 1969-1983
