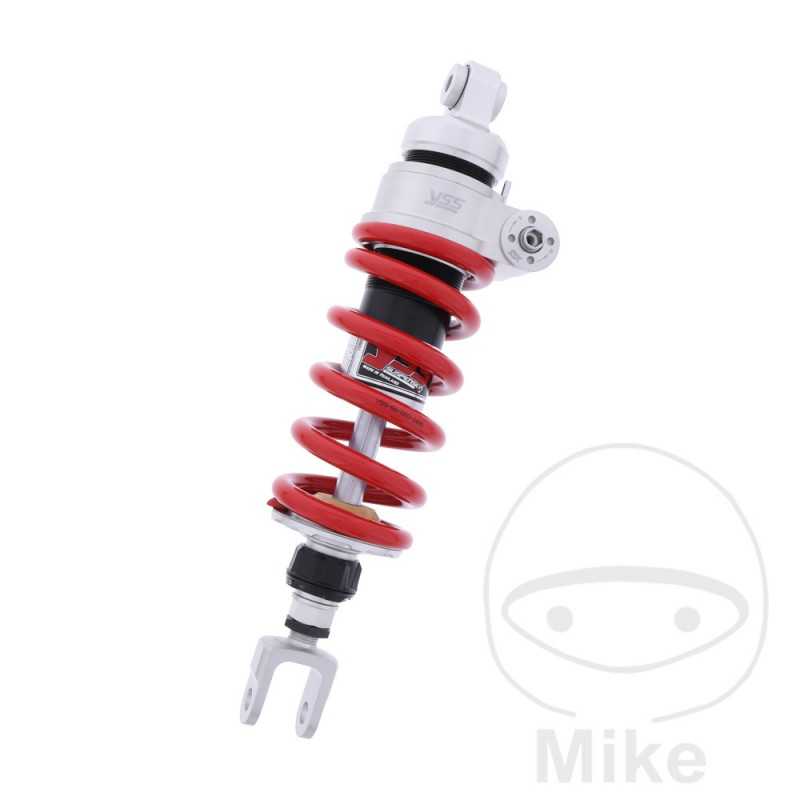

YSS SUSPENSION Adjustable rear suspension shock absorber 789.22.09

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 345MM
LOWER FIXING: FORK
FORK WIDTH: 26 MM
ADJUSTMENTS: HYDRAULIC SPRING PRELOAD
SPRING CHARACTERISTIC: 120
SPRING LENGTH: 165 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Tiger 800 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE10B8 --SMTTRE10B8 - 2011-2013
Triumph Tiger 800 ABS 95/48 CV, 70/35 kw 3cil. A08 Bastidores: SMTTRE15B8 --SMTTRE15B8 - 2011-2014
