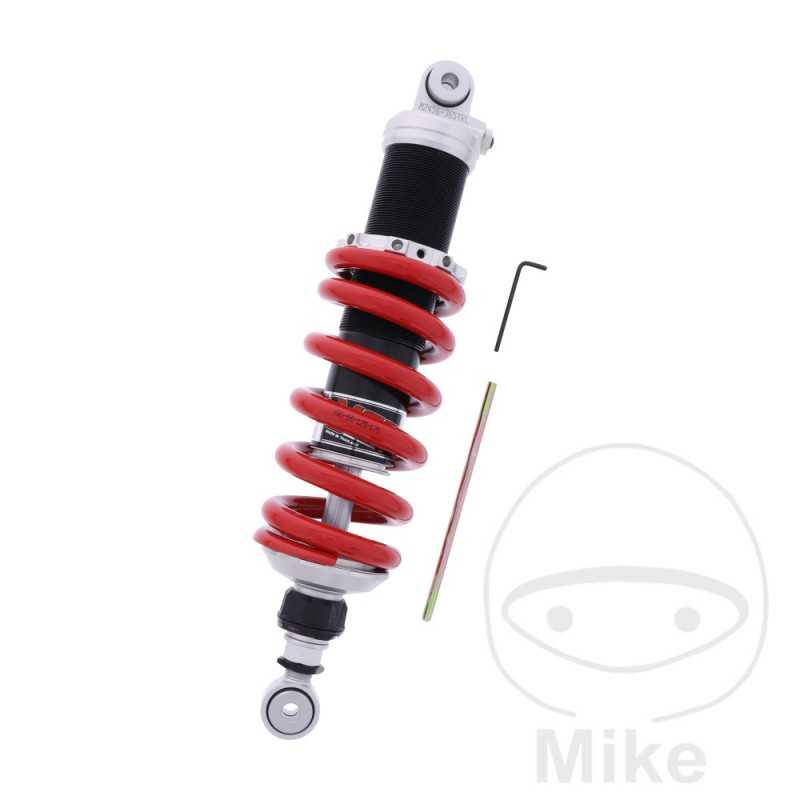

YSS SUSPENSION Adjustable rear suspension shock absorber 789.19.33

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length : 365mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 175
SPRING LENGTH: 175 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Duke 690 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2016
KTM Duke 690 ABS 68/34 CV, 50/25 kw 1cil. - Bastidores: --- 2012
KTM Duke 690 ABS 68/44 CV, 50/32 kw 1cil. - Bastidores: --- 2013-2015
KTM Duke 690 ABS 73 CV, 54 kw 1cil. - Bastidores: --- 2016
