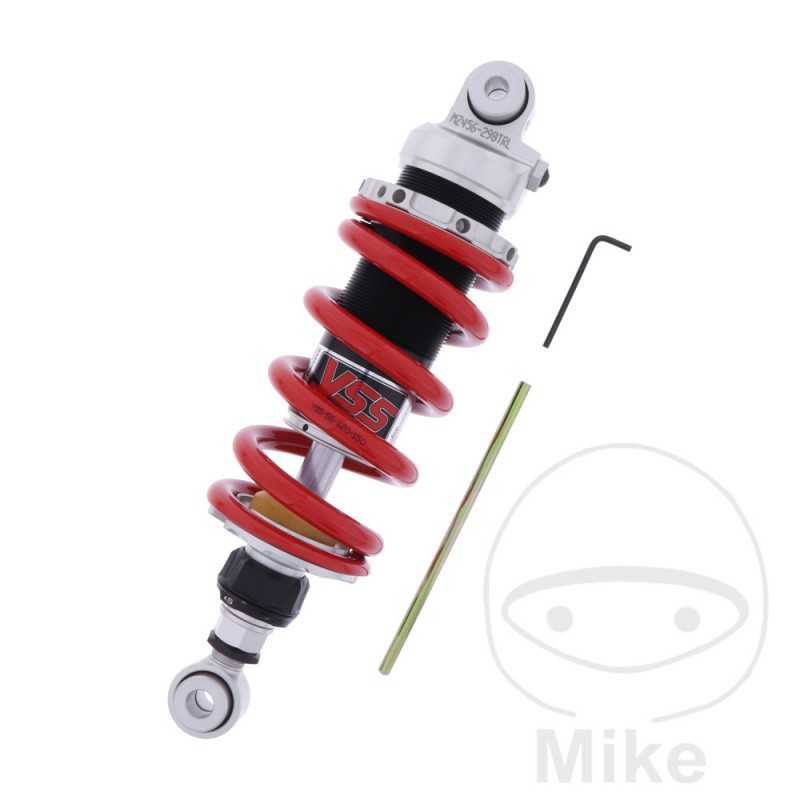

YSS SUSPENSION Adjustable rear suspension shock absorber 789.19.02

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 290MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 120
SPRING LENGTH: 150 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TZR 250 50 CV, 37 kw 2cil. 2MA 2MA Bastidores: 2MA henceforth00101-2MA henceforth05000 1987
Yamaha TZR 250 50 CV, 37 kw 2cil. 2MA 2XW1 Bastidores: 2MA henceforth05101-2MA henceforth14000 1988
