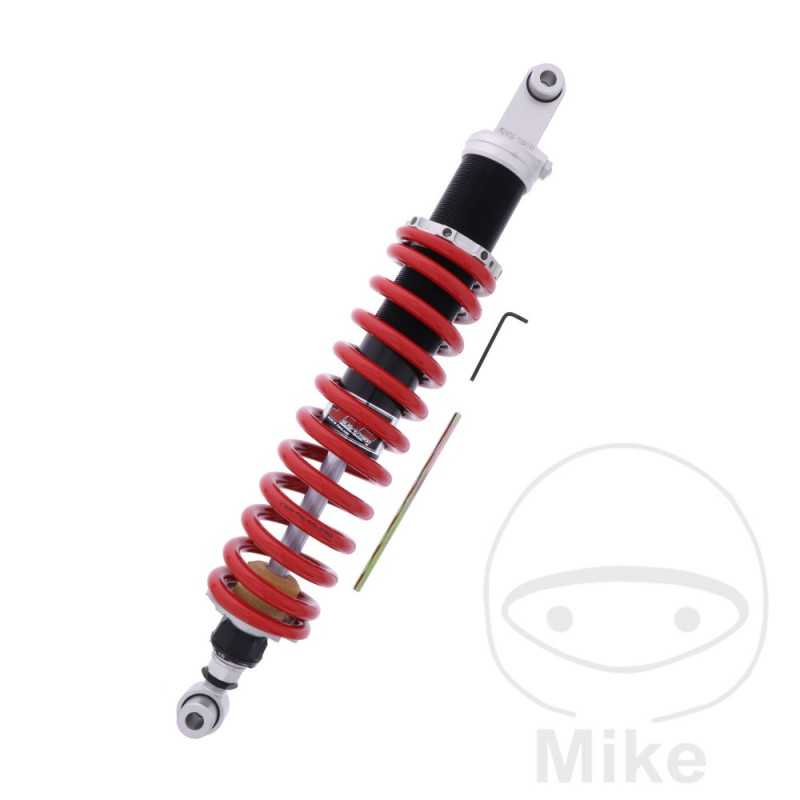

YSS SUSPENSION Adjustable rear suspension shock absorber 789.18.98

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 500MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 55
SPRING LENGTH: 290 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 550 27 CV, 20 kw 1cil. 5Y3 28E Bastidores: 5Y3-130101-5Y3-200000 1983
Yamaha XT 550 27 CV, 20 kw 1cil. 5Y3 5Y3 Bastidores: 5Y3 henceforth00101-5Y3-100000 1982
Yamaha XT 550 27 CV, 20 kw 1cil. 5Y3 5Y5 Bastidores: 5Y3-100101-5Y3-130000 1982
Yamaha XT 550 38 CV, 28 kw 1cil. 5Y3 28E Bastidores: 5Y3-130101-5Y3-200000 1983
Yamaha XT 550 38 CV, 28 kw 1cil. 5Y3 5Y3 Bastidores: 5Y3 henceforth00101-5Y3-100000 1982
Yamaha XT 550 38 CV, 28 kw 1cil. 5Y3 5Y5 Bastidores: 5Y3-100101-5Y3-130000 1982
