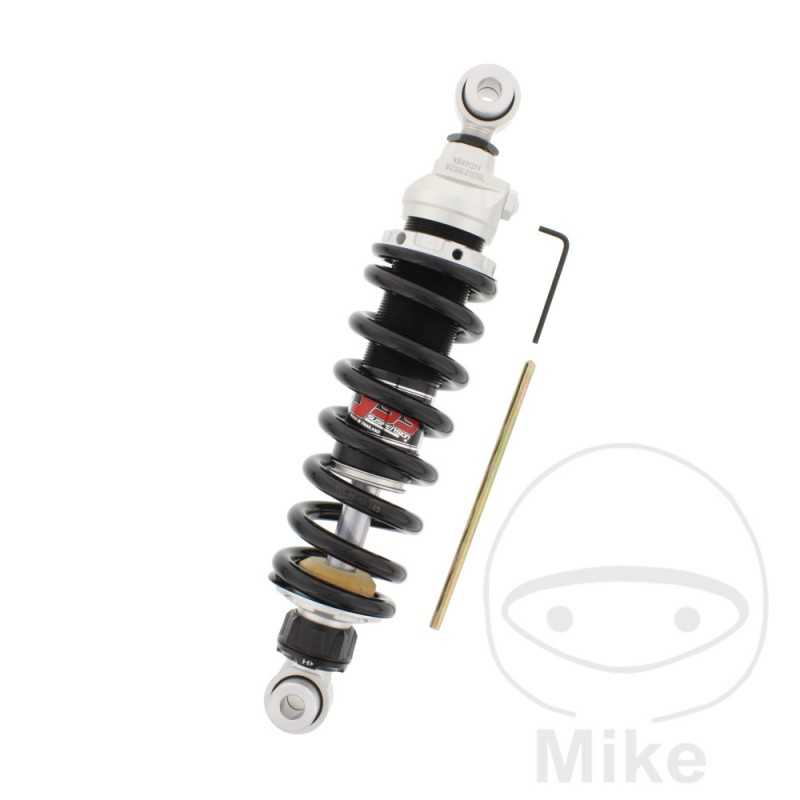

YSS SUSPENSION Adjustable rear suspension shock absorber 789.17.77

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 315MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 80
SPRING LENGTH: 185 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L1 Bastidores: 4L1 henceforth00101-4L1-100000 1980
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L1 Bastidores: 4L1-300101-4L1-400000 1981
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L2 Bastidores: 4L1-400101-4L1-500000 1981
Yamaha RD 250 LC 27 CV, 20 kw 2cil. 4L1 4L2 Bastidores: 4L1-530101-4L1-550000 1982-1983
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L1 Bastidores: 4L1 henceforth00101-4L1-100000 1980
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L1 Bastidores: 4L1-300101-4L1-400000 1981
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L2 Bastidores: 4L1-400101-4L1-500000 1981
Yamaha RD 250 LC 38 CV, 28 kw 2cil. 4L1 4L2 Bastidores: 4L1-530101-4L1-550000 1982-1983
Yamaha RD 350 LC 46 CV, 34 kw 2cil. 4L0 4L0 Bastidores: 4L0-200101-4L0-250000 1982-1983
Yamaha RD 350 LC 49 CV, 36 kw 2cil. 4L0 4L0 Bastidores: 4L0 henceforth00101-4L0-100000 1980
Yamaha RD 350 LC 49 CV, 36 kw 2cil. 4L0 4L0 Bastidores: 4L0-100101-4L0-200000 1981
