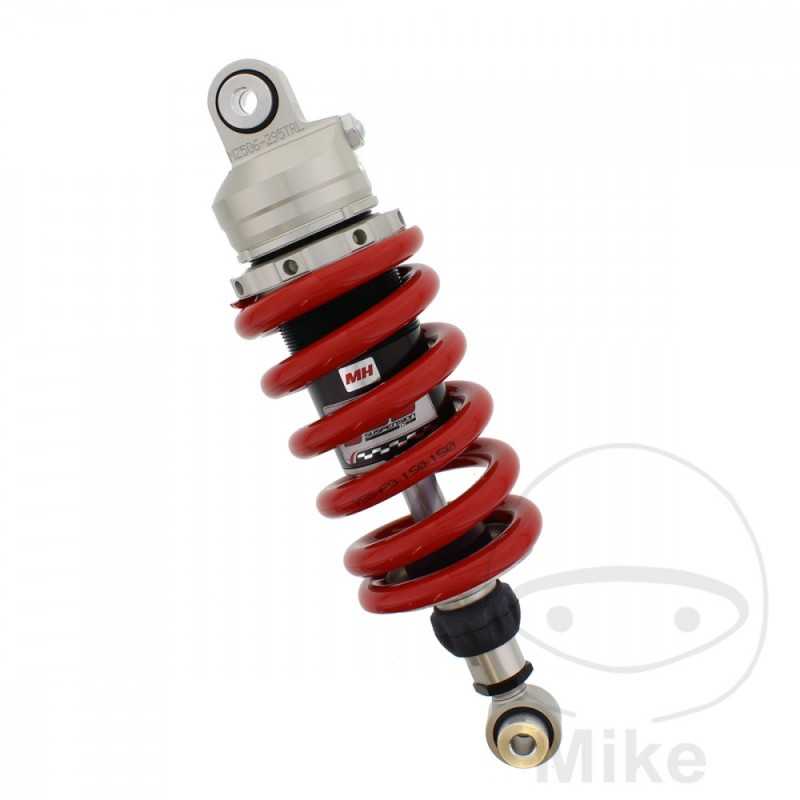

YSS SUSPENSION Adjustable rear suspension shock absorber 789.13.88

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 295MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 150
SPRING LENGTH: 150 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 600 F 100 CV, 74 kw 4cil. PC25 M Bastidores: PC25-2000055-PC25-2011277 1991
Honda CBR 600 F 100 CV, 74 kw 4cil. PC25 N Bastidores: PC25-2101435-PC25-2115035 1992
Honda CBR 600 F 27 CV, 20 kw 4cil. PC25 M Bastidores: PC25-4000001-PC25-4000400 1991
Honda CBR 600 F 27 CV, 20 kw 4cil. PC25 N Bastidores: PC25-4100001-PC25-4100780 1992
Honda CBR 600 F 27 CV, 20 kw 4cil. PC25 P Bastidores: PC25-4200001-PC25-4200735 1993
Honda CBR 600 F 34 CV, 25 kw 4cil. PC25 R Bastidores: PC25-6000001-PC25-6000660 1994
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 M Bastidores: PC25-3000001-PC25-3000036 1991
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 N Bastidores: PC25-3100001-PC25-3100371 1992
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 P Bastidores: PC25-3200001-PC25-3200406 1993
Honda CBR 600 F 50 CV, 37 kw 4cil. PC25 R Bastidores: PC25-3300001-PC25-3300029 1994
Honda CBR 600 F 98 CV, 72 kw 4cil. PC25 P Bastidores: PC25-2200003-PC25-2213156 1993
Honda CBR 600 F 98 CV, 72 kw 4cil. PC25 R Bastidores: PC25-2300691-PC25-2312054 1994
