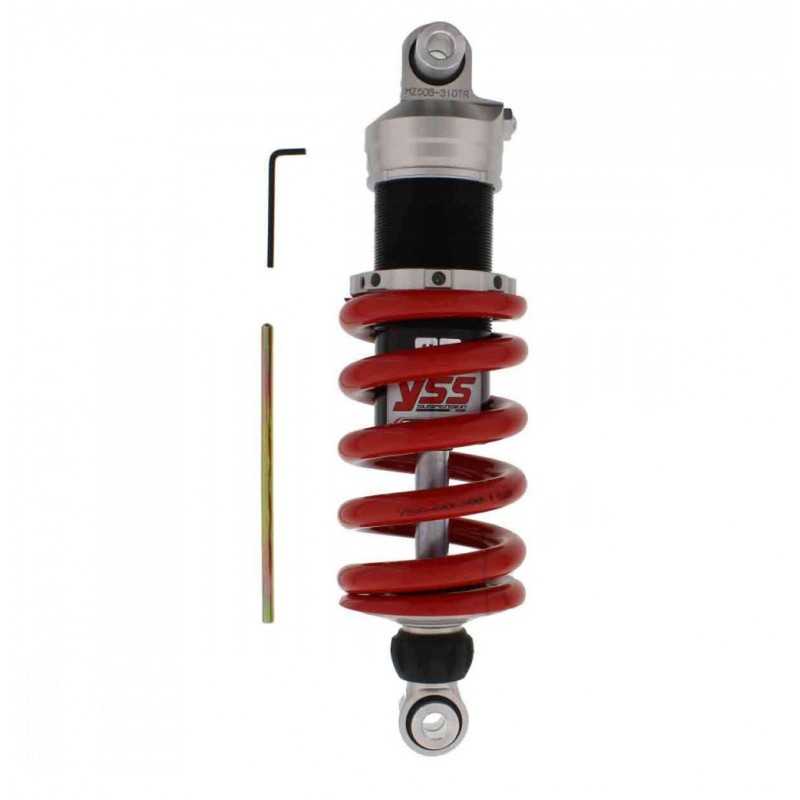

YSS SUSPENSION Adjustable rear suspension shock absorber 789.13.68

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 310MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 200
SPRING LENGTH: 150 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TDM 850 80 CV, 59 kw 2cil. 4TX 4TX1 Bastidores: 4TX henceforth00052-4TX henceforth15037 1996
Yamaha TDM 850 80 CV, 59 kw 2cil. 4TX 4TX2 Bastidores: 4TX henceforth16231-- 1997
Yamaha TDM 850 80 CV, 59 kw 2cil. 4TX 4TX3 Bastidores: 4TX henceforth27874-- 1998
Yamaha TDM 850 80 CV, 59 kw 2cil. 4TX 4TX4 Bastidores: 4TX henceforth49702-- 1999
Yamaha TDM 850 82 CV, 60 kw 2cil. 4TX 4TX6 Bastidores: 4TX henceforth68199-- 2000
Yamaha TDM 850 82 CV, 60 kw 2cil. 4TX 4TX8 Bastidores: 4TX henceforth89063-- 2001
