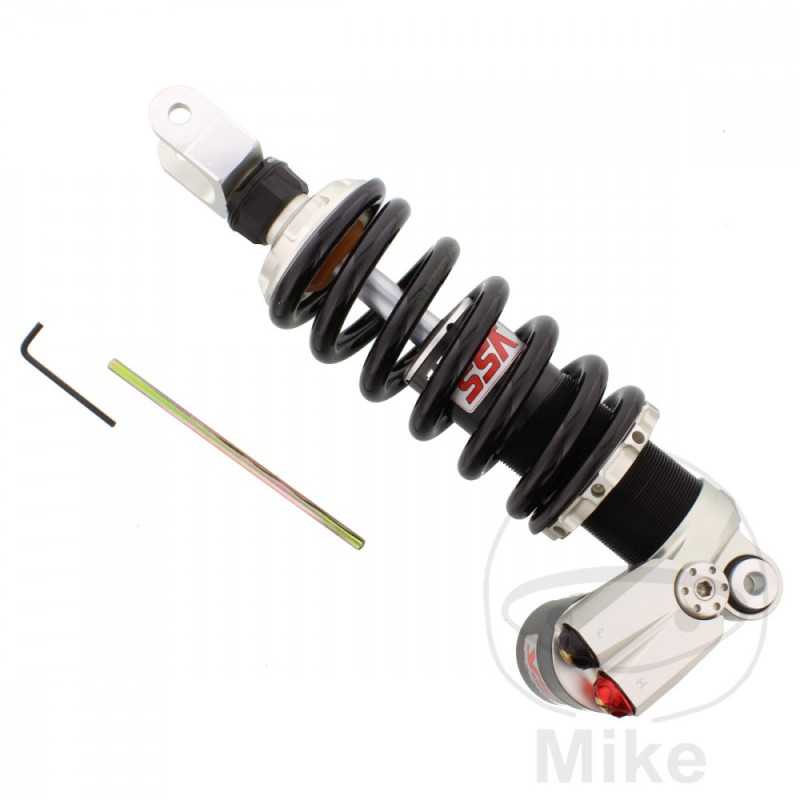

YSS SUSPENSION Adjustable rear suspension shock absorber 789.13.66

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 325MM
LOWER FIXING: FORK
FORK WIDTH: 37 MM
ADJUSTMENTS: PRESSURE LEVEL WITH HIGH / LOW ADJUSTMENT
SPRING CHARACTERISTIC: 110
SPRING LENGTH: 165 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSR 750 106 CV, 78 kw 4cil. C51111 L1 Bastidores: C51111 henceforth0100001-C51111 henceforth0109345 2011
Suzuki GSR 750 106 CV, 78 kw 4cil. C51111 L2 Bastidores: C51111 henceforth0109346-C51111 henceforth0111782 2012
Suzuki GSR 750 106 CV, 78 kw 4cil. C51111 L3 Bastidores: C51111 henceforth0111783-C51111 henceforth0114748 2013
Suzuki GSR 750 A ABS 106 CV, 78 kw 4cil. C51121 L2 Bastidores: C51121 henceforth0100001-C51121 henceforth0103355 2012
Suzuki GSR 750 A ABS 106 CV, 78 kw 4cil. C51121 L3 Bastidores: C51121 henceforth0103356-C51121 henceforth0106077 2013
Suzuki GSR 750 A ABS 106 CV, 78 kw 4cil. C51121 L3 Bastidores: C51121 henceforth0106078-C5112-100999999 2015
Suzuki GSR 750 A ABS 106 CV, 78 kw 4cil. C51121 L4 Bastidores: C51121 henceforth0106078-C5112-100999999 2014
Suzuki GSR 750 A ABS 106 CV, 78 kw 4cil. C51121 L6 Bastidores: C51121-G0100001-- 2016-2017
Suzuki GSR 750 AUE ABS 34 CV 25 kw 4cil. C51121 L2 Bastidores: C52121 henceforth0100001-C52121 henceforth0100151 2012
Suzuki GSR 750 AUE ABS 48 CV, 35 kw 4cil. C51121 L3 Bastidores: C52121 henceforth0100152-- 2013
Suzuki GSR 750 AUE ABS 48 CV, 35 kw 4cil. C51121 L3 Bastidores: C52121 henceforth0100212-C52121 henceforth0106077 2015
Suzuki GSR 750 AUE ABS 48 CV, 35 kw 4cil. C51121 L4 Bastidores: C52121 henceforth0100212-C52121 henceforth0106077 2014
Suzuki GSR 750 UE 34 CV, 25 kw 4cil. C52111 L1 Bastidores: C52111 henceforth0100001-C52111 henceforth0100071 2011
Suzuki GSR 750 UE 34 CV, 25 kw 4cil. C52111 L2 Bastidores: C52111 henceforth0100072-C52111 henceforth0100073 2012
Suzuki GSR 750 UE 48 CV, 35 kw 4cil. C52111 L3 Bastidores: C52111 henceforth0100074-- 2013
Suzuki GSR 750 Z 106 CV, 78 kw 4cil. C51111 L4 Bastidores: C51111 henceforth0114749-- 2014
Suzuki GSR 750 Z 106 CV, 78 kw 4cil. C51111 L5 Bastidores: C51111 henceforth0119123-- 2015
Suzuki GSR 750 ZA ABS 106 CV, 78 kw 4cil. C51121 L4 Bastidores: C51121 henceforth0106078-- 2014
Suzuki GSR 750 ZA ABS 106 CV, 78 kw 4cil. C51121 L5 Bastidores: C51121 henceforth0111409-- 2015
