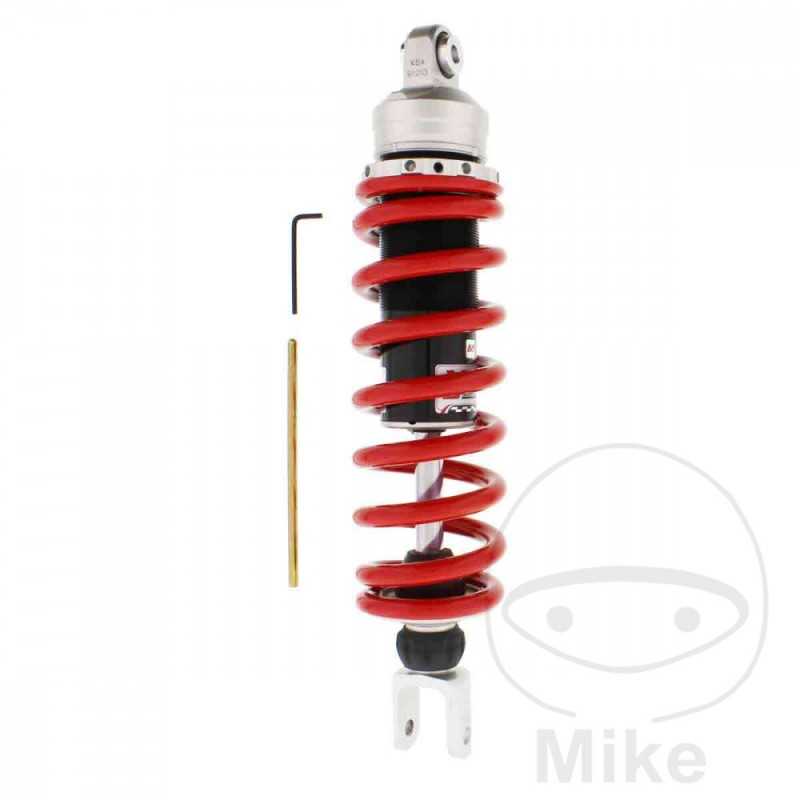

YSS SUSPENSION Adjustable rear suspension shock absorber 789.13.30

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 385MM
LOWER FIXING: FORK
FORK WIDTH: 30 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 65
SPRING LENGTH: 245 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP44B N Bastidores: SP44B-100001-SP44B-101523 1992
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP44B P Bastidores: SP44B-101524-SP44B-103805 1993
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP44B R Bastidores: SP44B-103806-- 1994-1995
Suzuki DR 650 RE 45 CV, 33 kw 1cil. SP45B R Bastidores: SP45B-100001-SP45B-101314 1994
Suzuki DR 650 RE 45 CV, 33 kw 1cil. SP45B S Bastidores: SP45B-101315-- 1995
Suzuki DR 650 REU 34 CV, 25 kw 1cil. SP45B R Bastidores: SP45B-100001-SP45B-101314 1994
Suzuki DR 650 REU 34 CV, 25 kw 1cil. SP45B S Bastidores: SP45B-101315-- 1995
Suzuki DR 650 RS 46 CV, 34 kw 1cil. SP42B L Bastidores: SP42B-100001-SP42B-101105 1990
Suzuki DR 650 RS 46 CV, 34 kw 1cil. SP42B M Bastidores: SP42B-101106-- 1991
Suzuki DR 650 RSE 45 CV, 33 kw 1cil. SP43B T Bastidores: SP43B-105569-- 1996
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B M Bastidores: SP43B-100001-SP43B-100904 1991
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B N Bastidores: SP43B-100905-SP43B-101857 1992
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B P Bastidores: SP43B-101858-SP43B-103588 1993
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B R Bastidores: SP43B-103589-SP43B-104946 1994
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B S Bastidores: SP43B-104947-SP43B-105568 1995
Suzuki DR 650 RSEU 27 CV, 20 kw 1cil. SP43B M Bastidores: SP43B-100001-SP43B-100904 1991
Suzuki DR 650 RSEU 27 CV, 20 kw 1cil. SP43B N Bastidores: SP43B-100905-SP43B-101857 1992
Suzuki DR 650 RSEU 27 CV, 20 kw 1cil. SP43B P Bastidores: SP43B-101858-SP43B-103588 1993
Suzuki DR 650 RSEU 34 CV, 25 kw 1cil. SP43B R Bastidores: SP43B-103589-SP43B-104946 1994
Suzuki DR 650 RSEU 34 CV, 25 kw 1cil. SP43B S Bastidores: SP43B-104947-SP43B-105568 1995
Suzuki DR 650 RSEU 34 CV, 25 kw 1cil. SP43B T Bastidores: SP43B-105569-- 1996
Suzuki DR 650 RSU 27 CV, 20 kw 1cil. SP42B L Bastidores: SP42B-100001-SP42B-101105 1990
Suzuki DR 650 RSU 27 CV, 20 kw 1cil. SP42B M Bastidores: SP42B-101106-- 1991
Suzuki DR 650 RU 27 CV, 20 kw 1cil. SP44B N Bastidores: SP44B-100001-SP44B-101523 1992
Suzuki DR 650 RU 27 CV, 20 kw 1cil. SP44B P Bastidores: SP44B-101524-SP44B-103805 1993
Suzuki DR 650 RU 34 CV, 25 kw 1cil. SP44B R Bastidores: SP44B-103806-- 1994-1995
