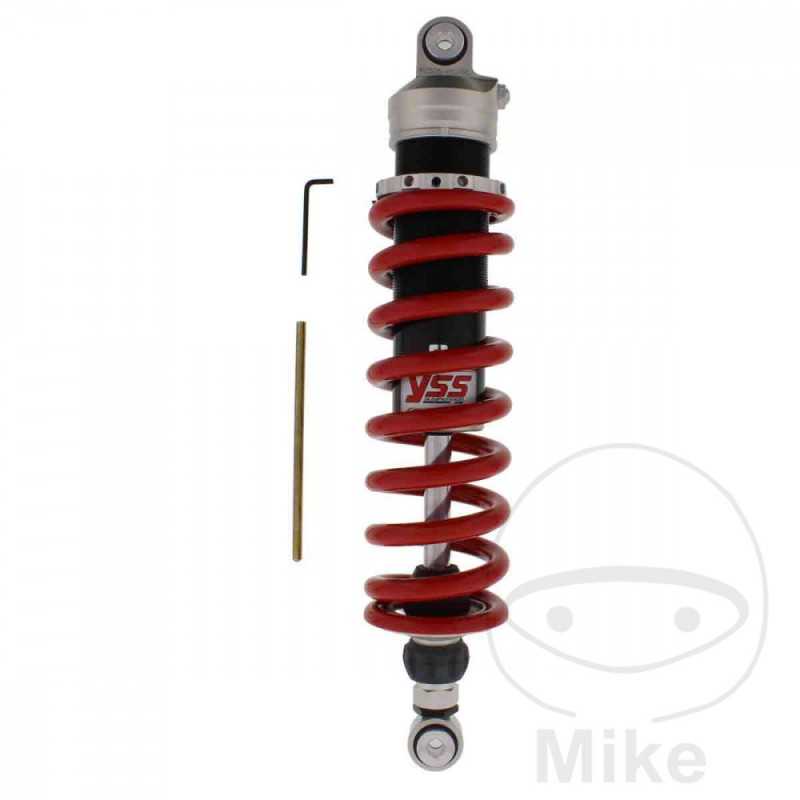

YSS SUSPENSION Adjustable rear suspension shock absorber 789.08.66

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 405
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 85
SPRING LENGTH: 260 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DR 750 S Big 50 CV, 37 kw 1cil. SR41B J Bastidores: SR41B-100001-SR41B-101750 1988
Suzuki DR 750 S Big 50 CV, 37 kw 1cil. SR41B K Bastidores: SR41B-101751-- 1989
Suzuki DR 750 SU Big 27 CV, 20 kw 1cil. SR41B J Bastidores: SR41B-100001-SR41B-101750 1988
Suzuki DR 750 SU Big 27 CV, 20 kw 1cil. SR41B K Bastidores: SR41B-101751-- 1989
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR42B L Bastidores: SR42B-100001-- 1990
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B M Bastidores: SR43B-100001-SR43B-100876 1991
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B N Bastidores: SR43B-100877-SR43B-101720 1992
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B P Bastidores: SR43B-101721-SR43B-103042 1993
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B R Bastidores: SR43B-103043-SR43B-104152 1994
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B S Bastidores: SR43B-104153-SR43B-105520 1995-1996
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B V Bastidores: SR43B-105521-- 1997-1999
Suzuki DR 800 SU Big 27 CV, 20 kw 1cil. SR42B L Bastidores: SR42B-100001-- 1990
Suzuki DR 800 SU Big 27 CV, 20 kw 1cil. SR43B M Bastidores: SR43B-100001-SR43B-100876 1991
Suzuki DR 800 SU Big 27 CV, 20 kw 1cil. SR43B N Bastidores: SR43B-100877-SR43B-101720 1992
Suzuki DR 800 SU Big 27 CV, 20 kw 1cil. SR43B P Bastidores: SR43B-101721-SR43B-103042 1993
Suzuki DR 800 SU Big 34 CV, 25 kw 1cil. SR43B R Bastidores: SR43B-103043-SR43B-104152 1994
Suzuki DR 800 SU Big 34 CV, 25 kw 1cil. SR43B S Bastidores: SR43B-104153-SR43B-105520 1995-1996
Suzuki DR 800 SU Big 34 CV, 25 kw 1cil. SR43B V Bastidores: SR43B-105521-- 1997-1999
