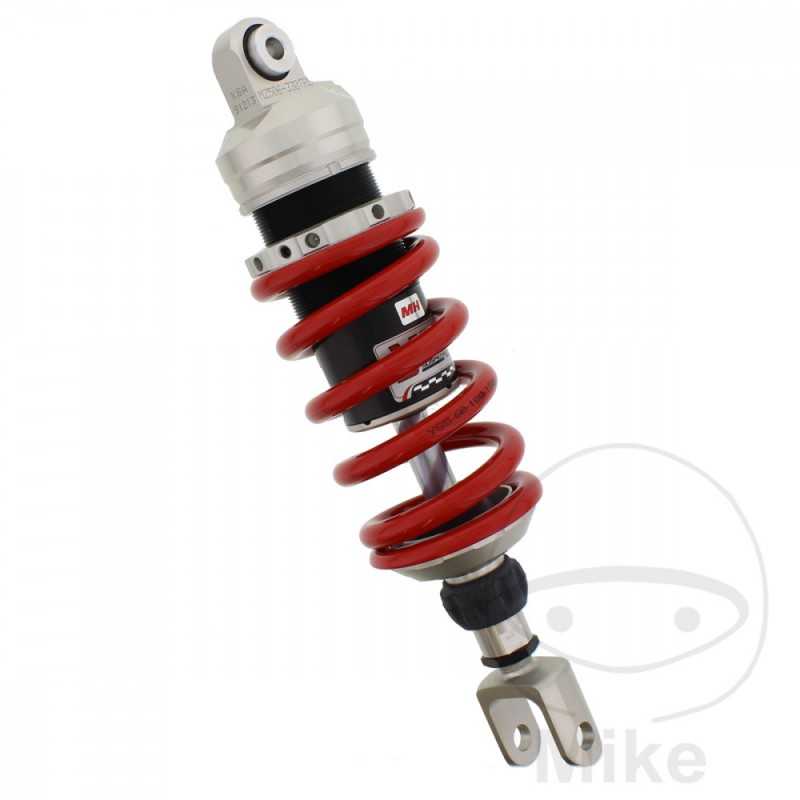

YSS SUSPENSION Adjustable rear suspension shock absorber 789.08.18

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 330MM
LOWER FIXING: FORK
FORK WIDTH: 30 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 100
SPRING LENGTH: 150 MM
SPRING DIAMETER: 56 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 45 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MT09 850 115 CV, 85 kw 3cil. RN291 1RC1 Bastidores: RN291 henceforth00301-- 2013-2015
Yamaha MT09 850 115 CV, 85 kw 3cil. RN291 1RCA Bastidores: RN291 henceforth00403-- 2013-2015
Yamaha MT09 850 115 CV, 85 kw 3cil. RN291 1RCD Bastidores: RN291 henceforth00351-- 2013-2015
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN296 2DR1 Bastidores: RN296 henceforth00322-- 2013-2014
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN296 2DR4 Bastidores: RN296 henceforth00348-- 2013-2014
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN296 2DR7 Bastidores: RN296 henceforth00301-- 2013-2014
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN296 2DRF Bastidores: RN296 henceforth07815-- 2015
Yamaha MT09 850 A ABS 115 CV, 85 kw 3cil. RN29S 2DRN Bastidores: RN29S henceforth00301-- 2016
Yamaha MT09 850 A Sport Tracker ABS 115 CV, 85 kw 3cil. RN296 Bastidores: RN296--- 2014
Yamaha MT09 850 A Sport Tracker ABS 115 CV, 85 kw 3cil. RN296 2DRF Bastidores: RN296 henceforth07815-- 2015
Yamaha MT09 850 A Sport Tracker ABS 115 CV, 85 kw 3cil. RN29S 2DRN Bastidores: RN29S henceforth00301-- 2016
Yamaha MT09 850 A Street Rally ABS 115 CV, 85 kw 3cil. RN296 2DRA Bastidores: RN296 henceforth02622-- 2014
Yamaha MT09 850 A Street Rally ABS 115 CV, 85 kw 3cil. RN296 2DRJ Bastidores: RN296 henceforth08985-- 2015-2016
Yamaha MT09 850 Sport Tracker 115 CV, 85 kw 3cil. RN291 Bastidores: RN291--- 2014-2015
Yamaha MT09 850 Street Rally 115 CV, 85 kw 3cil. RN291 1RCJ Bastidores: RN291 henceforth02299-- 2014
Yamaha MT09 850 Street Rally 115 CV, 85 kw 3cil. RN291 1RCN Bastidores: RN291 henceforth04229-- 2015
Yamaha MT09 850 Street Rally 115 CV, 85 kw 3cil. RN291 1RCW Bastidores: RN291 henceforth04709-- 2015
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN29F 2SC1 Bastidores: RN29F henceforth00301-- 2015
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN29F 2SC9 Bastidores: RN29F henceforth00360-- 2015
Yamaha Tracer 900 850 MT09TRA ABS 115 CV, 85 kw 3cil. RN29F 2SCC Bastidores: RN29F henceforth10727-- 2016
