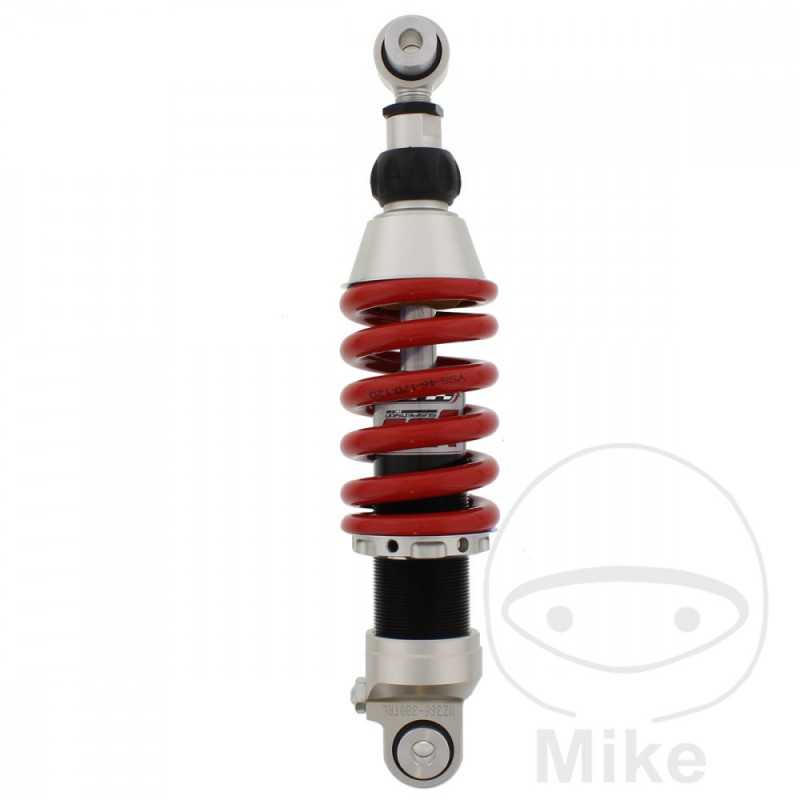

YSS SUSPENSION Adjustable rear suspension shock absorber 789.07.92

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 300 mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 170
SPRING LENGTH: 120 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 500 D Silverwing 27 CV, 20 kw 2cil. PC02 C Bastidores: PC02-3000001-PC02-3099999 1982-1983
Honda GL 500 D Silverwing 50 CV, 37 kw 2cil. PC02 C Bastidores: PC02-4000003-PC02-4099999 1982-1983
