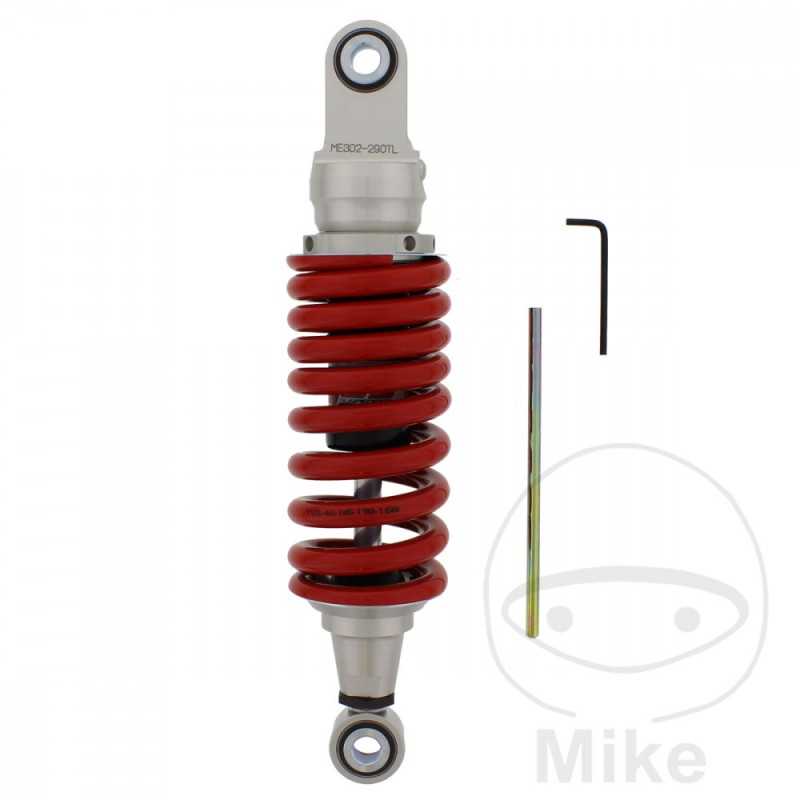

YSS SUSPENSION Adjustable rear suspension shock absorber 789.05.49

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 290MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 105-190
SPRING LENGTH: 160 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Derbi Senda 125 R 11,4 CV, 8,4 kw 1cil. SC1B1A Bastidores: VTHSC1B1A5H270708-- 2007-2008
Derbi Senda 125 R 12 CV, 9 kw 1cil. SC1B1A Bastidores: --- 2004
Derbi Senda 125 R 12 CV, 9 kw 1cil. SC1B1A Bastidores: VTHSC1B1A5H270708-- 2005-2006
Derbi Senda 125 R Baja 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 125 SM 11,4 CV, 8,4 kw 1cil. SC2B1A Bastidores: VTHSC2B1A5H269375-- 2007
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2B1A Bastidores: --- 2004
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2B1A Bastidores: VTHSC2B1A5H269375-- 2005-2006
Derbi Senda 125 SM Baja 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2007
