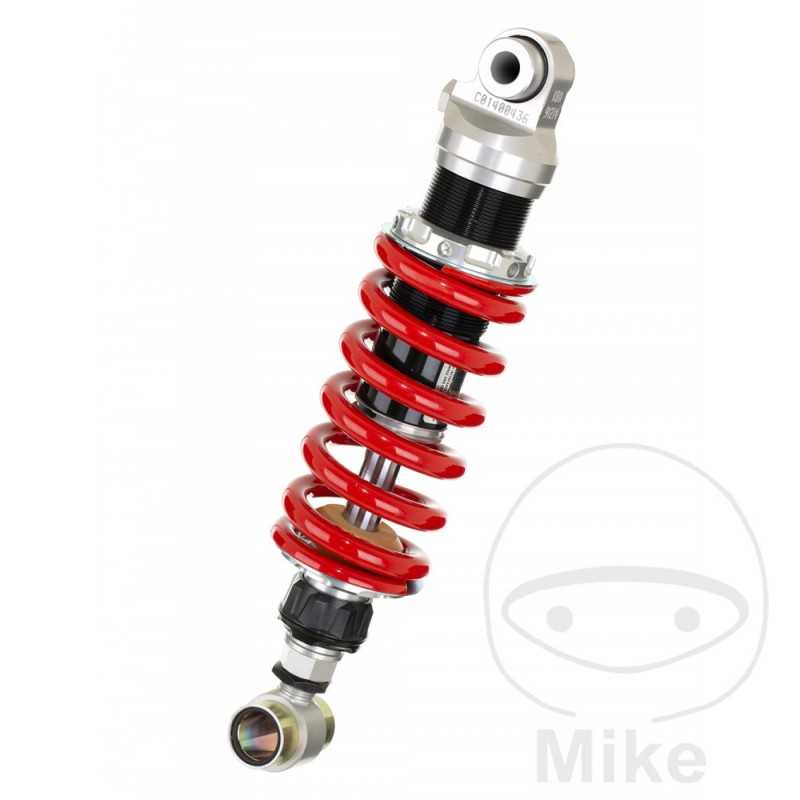

YSS SUSPENSION Adjustable rear shock absorber 789.05.24

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 290MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 115
SPRING LENGTH: 150 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA RD 350 LC YPVS 27/50/59 CV, 20/37/43 KW 2CIL. 31K 1JF BASTIDORES: 31K henceforth77101-31K henceforth85000 1985
YAMAHA RD 350 LC YPVS 27/50/59 CV, 20/37/43 KW 2CIL. 31K 1JG BASTIDORES: 31K henceforth85101-31K henceforth88000 1985
YAMAHA RD 350 LC YPVS 27/50/59 CV, 20/37/43 KW 2CIL. 31K 31K BASTIDORES: 31K henceforth00101-31K henceforth15000 1983
YAMAHA RD 350 LC YPVS 27/50/59 CV, 20/37/43 KW 2CIL. 31K 31W BASTIDORES: 31K henceforth15101-31K henceforth25000 1983
YAMAHA RD 350 LC YPVS 27/50/59 CV, 20/37/43 KW 2CIL. 31K 31W BASTIDORES: 31K henceforth44101-31K henceforth48000 1984
YAMAHA RD 350 LCF YPVS 27/50 CV, 20/37 KW 2CIL. 31K 1AF BASTIDORES: 31K henceforth72101-31K henceforth77000 1985
YAMAHA RD 350 LCF YPVS 27/50 CV, 20/37 KW 2CIL. 31K 57V BASTIDORES: 31K henceforth53101-31K henceforth72000 1985
YAMAHA RD 350 LCFH YPVS 50 CV, 37 KW 2CIL. 1WW 1WW BASTIDORES: 1WW henceforth00101-1WW henceforth02000 1986-1987
YAMAHA RD 350 LCFH YPVS 50 CV, 37 KW 2CIL. 1WW 3DJ1 BASTIDORES: 1WW henceforth04101-1WW henceforth06000 1988-1989
YAMAHA RD 350 LCFN YPVS 27 CV, 20 KW 2CIL. 1WX 1WX BASTIDORES: 1WX henceforth00101-1WX henceforth02000 1986-1987
YAMAHA RD 350 LCFN YPVS 27 CV, 20 KW 2CIL. 1WX 3DK1 BASTIDORES: 1WX henceforth04101-1WX henceforth05000 1988-1989
YAMAHA RD 350 LCH YPVS 50 CV, 37 KW 2CIL. 1WW 1XA BASTIDORES: 1WW henceforth02101-1WW henceforth04000 1986-1989
YAMAHA RD 350 LCN YPVS 27 CV, 20 KW 2CIL. 1WX 1XE BASTIDORES: 1WX henceforth02101-1WX henceforth04000 1986-1989
