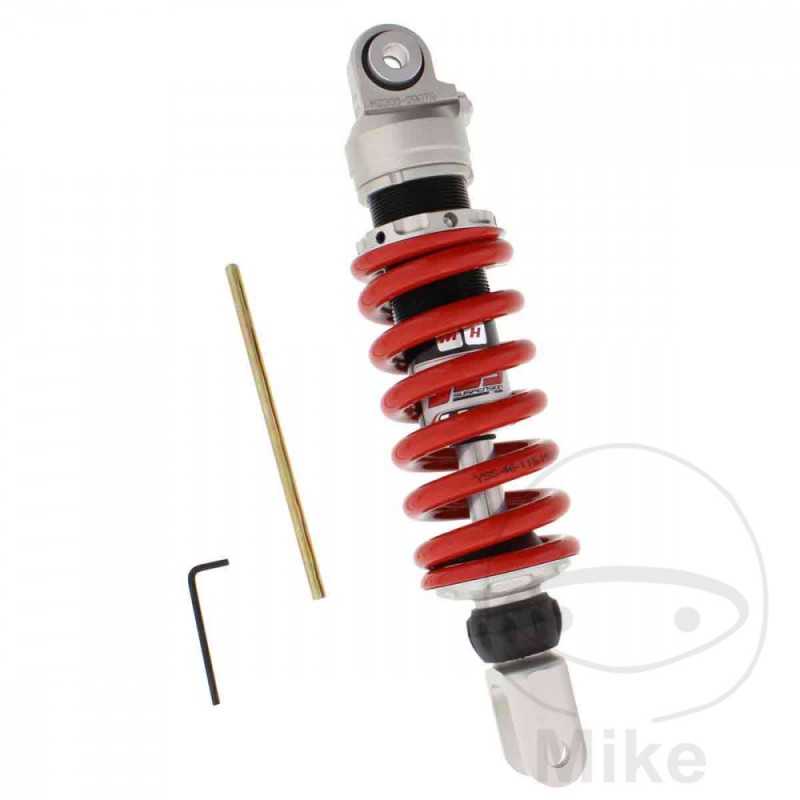

YSS SUSPENSION Adjustable rear suspension shock absorber 789.02.56

TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 290MM
LOWER FIXING: FORK
FORK WIDTH: 30 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 115
SPRING LENGTH: 150 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 16 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51A Y Bastidores: GM51A-504497-- 2000
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B T Bastidores: GM51B-136197-GM51B-139795 1996
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B V Bastidores: GM51B-139796-GM51B-142295 1997
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B W Bastidores: GM51B-142296-GM51B-145392 1998
Suzuki GS 500 E 45 CV, 33 kw 2cil. GM51B X Bastidores: GM51B-145393-- 1999
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B L Bastidores: GM51B-102076-GM51B-105600 1990
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B M Bastidores: GM51B-105601-GM51B-110302 1991
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B N Bastidores: GM51B-110303-GM51B-117230 1992
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B P Bastidores: GM51B-117231-GM51B-124309 1993
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B R Bastidores: GM51B-124310-GM51B-131391 1994
Suzuki GS 500 E 46 CV, 34 kw 2cil. GM51B S Bastidores: GM51B-131392-GM51B-136196 1995
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B L Bastidores: GM51B-102076-GM51B-105600 1990
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B M Bastidores: GM51B-105601-GM51B-110302 1991
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B N Bastidores: GM51B-110303-GM51B-117230 1992
Suzuki GS 500 EU 27 CV, 20 kw 2cil. GM51B P Bastidores: GM51B-117231-GM51B-124309 1993
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B R Bastidores: GM51B-124310-GM51B-131391 1994
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B S Bastidores: GM51B-131392-GM51B-136196 1995
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B T Bastidores: GM51B-136197-GM51B-139345 1996
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B V Bastidores: GM51B-139346-GM51B-142370 1997
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B W Bastidores: GM51B-142371-GM51B-145202 1998
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B X Bastidores: GM51B-145203-- 1999
Suzuki GS 500 EU 34 CV, 25 kw 2cil. GM51B Y Bastidores: GM51B-501303-- 2000
Suzuki GS 500 EUZ 27 CV, 20 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
Suzuki GS 500 EZ 46 CV, 34 kw 2cil. GM51B K Bastidores: GM51B-100001-GM51B-102075 1989
