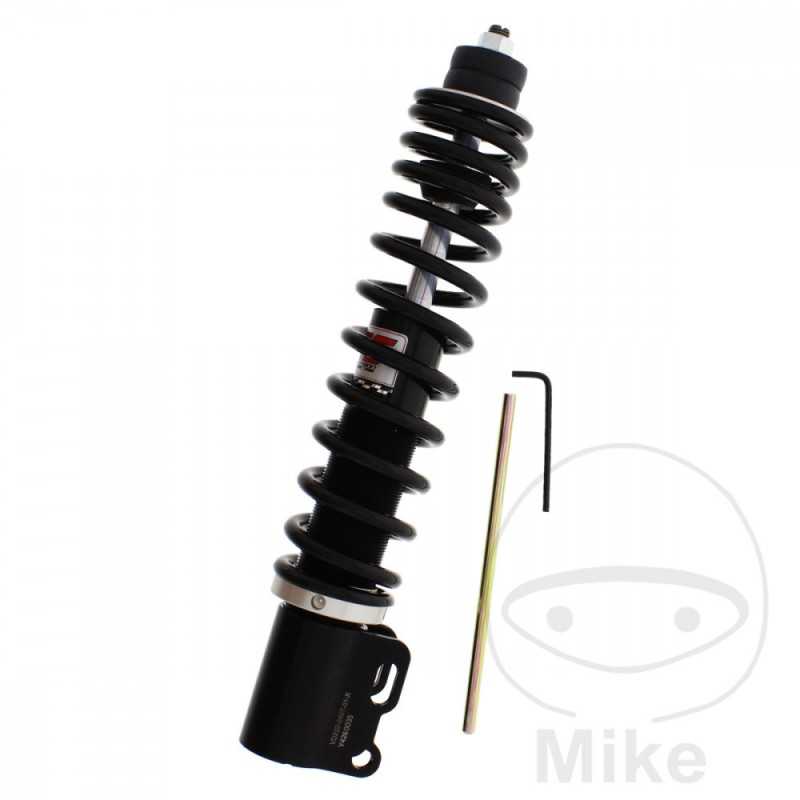

YSS SUSPENSION Adjustable rear suspension shock absorber 789.01.93

TYPE: OIL PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 240MM
LOWER FIXING: DOUBLE SCREW
DOUBLE SCREWED DISTANCE: 28-38 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 220 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Hexagon 125 2T 14,3 CV, 10,5 kw 1cil. EXS1T Bastidores: EXS1T henceforth0001001-- 1997-1998
Piaggio Hexagon 125 LX 2T 13,9 CV, 10,2 kw 1cil. M05000 Bastidores: ZAPM05000 henceforth0001503-- 1998-2000
Piaggio Hexagon 125 LX4 4T 10,3 CV, 7,6 kw 1cil. M15000 Bastidores: ZAPM15000 henceforth0001001-- 1998-2000
Piaggio Hexagon 180 LXT 2T 19 CV, 14 kw 1cil. M06000 Bastidores: ZAPM06000 henceforth0001006-- 1998-2000
Piaggio Hexagon 250 GT 16 CV, 11,8 kw 1cil. M14000 Bastidores: ZAPM14000 henceforth0001001-ZAPM14000 henceforth0014817 1998-2000
Vespa GT 125 L Granturismo 15 CV, 11 kw 1cil. M31100 Bastidores: ZAPM31100 henceforth0001001-ZAPM31100 henceforth0017186 2004-2005
Vespa GT 125 L Granturismo 15 CV, 11 kw 1cil. M31101 Bastidores: ZAPM31101 henceforth001001-- 2006-2007
Vespa GT 200 L Granturismo 20 CV, 14,7 kw 1cil. M31200 Bastidores: ZAPM31200 henceforth0001001-- 2004-2006
Vespa GTS 125 14,3 CV, 10,5 kw 1cil. M31300 Bastidores: ZAPM31300 henceforth1000001-- 2007-2009
Vespa GTS 125 ie IGET ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Super ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super Notte ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Super Notte ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super Sport ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Super Sport ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Super Tech ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Touring ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Touring ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie IGET Yacht Club ABS 12,2 CV, 9 kw 1cil. MA3100/3200 Bastidores: --- 2017-2018
Vespa GTS 125 ie IGET Yacht Club ABS 12,2 CV, 9 kw 1cil. MA3700 Bastidores: ZAPMA3700 henceforth0001001-- 2019-2020
Vespa GTS 125 ie Super 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2010-2016
Vespa GTS 125 ie Super Sport 15 CV, 11 kw 1cil. M45300 Bastidores: ZAPM45300 henceforth0001001-- 2011-2013
Vespa GTS 250 ie 21,3 CV, 15,7 kw 1cil. M45100 Bastidores: ZAPM45100 henceforth0001001-- 2006-2011
Vespa GTS 250 ie ABS 21,3 CV, 15,7 kw 1cil. M45101 Bastidores: ZAPM45101 henceforth0001001-- 2006-2009
Vespa GTS 300 ie 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2012-2014
Vespa GTS 300 ie ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2017-2018
Vespa GTS 300 ie Super 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2010-2016
Vespa GTS 300 ie Super 21,8 CV, 16 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2008-2009
Vespa GTS 300 ie Super ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2017-2018
Vespa GTS 300 ie Super Notte ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2017-2019
Vespa GTS 300 ie Super Sport 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2010-2013
Vespa GTS 300 ie Super Sport ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM4520 henceforth00001001-- 2017-2018
Vespa GTS 300 ie Touring 21,5 CV, 15,8 kw 1cil. M45200 Bastidores: ZAPM45200 henceforth0001001-- 2012-2014
Vespa GTS 300 ie Touring ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM4520 henceforth00001001-- 2017-2018
Vespa GTS 300 ie Yacht Club ABS 21,3 CV, 15,6 kw 1cil. M45200 Bastidores: ZAPM4520 henceforth00001001-- 2017-2019
Vespa GTV 125 14,3 CV, 10,5 kw 1cil. M31301 Bastidores: ZAPM31301 henceforth0001001-- 2007-2009
Vespa GTV 250 ie 21,3 CV, 15,7 kw 1cil. M45102 Bastidores: ZAPM45102 henceforth0001001-- 2007-2011
Vespa GTV 300 ie Sei Giorni ABS 21,5 CV, 15,8 kw 1cil. MA3302 Bastidores: ZAPM43302 henceforth0001001-- 2017-2018
Vespa GTV 300 ie Sei Giorni ABS 21,5 CV, 15,8 kw 1cil. MA3602 Bastidores: ZAPMA3602 henceforth0000001-- 2019
Vespa GTV 300 ie Via Montenapoleone 21,5 CV, 15,8 kw 1cil. M45201 Bastidores: ZAPM45201 henceforth0001001-- 2010-2011
Vespa GTV 300 ie Vie Della Moda 21,5 CV, 15,8 kw 1cil. M4520 Bastidores: ZAPM4520 henceforth00001001-- 2012-2013
