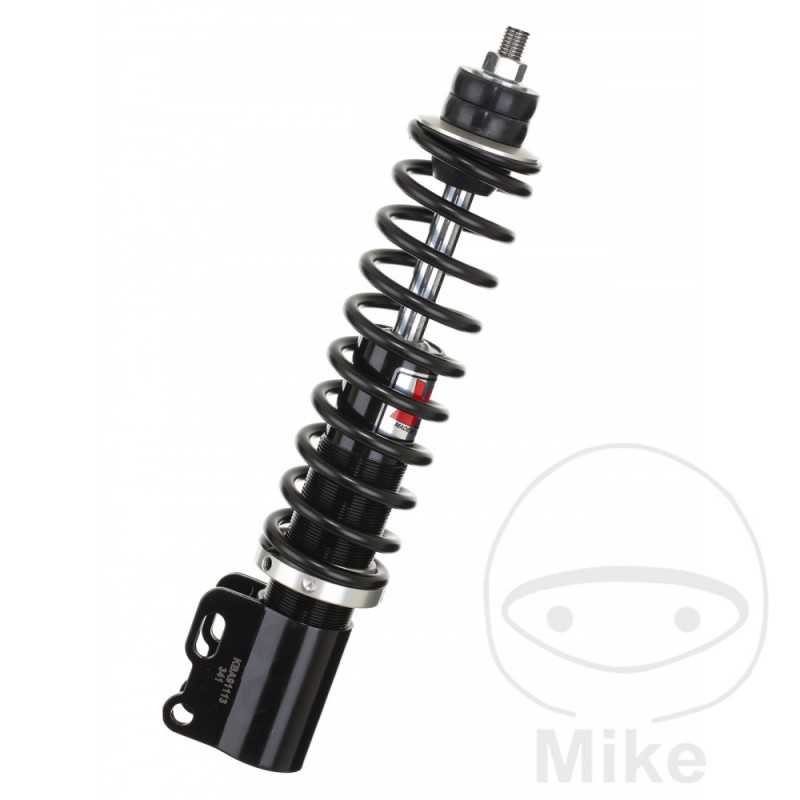

YSS SUSPENSION Adjustable rear suspension shock absorber 789.01.90

TYPE: OIL PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
Length: 210mm
LOWER FIXING: DOUBLE SCREW
DOUBLE SCREWED DISTANCE: 28-38 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING FEATURE: 14
SPRING LENGTH: 180 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Quartz 50 4,5 CV, 3,3 kw 1cil. NSP1T Bastidores: NSP1T henceforth0001001-- 1992-1996
Piaggio Sfera 50 1 TT 3,7 CV, 2,7 kw 1cil. NSL1T Bastidores: NSL1T henceforth001001-- 1991-1996
Piaggio Sfera 50 1 TT catalizador 3,7 CV, 2,7 kw 1cil. NSL1T Bastidores: NSL1T henceforth001001-- 1991-1996
Piaggio Sfera 50 2 DT catalizador 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 henceforth00001001-- 1997
Piaggio Sfera 50 2 DT RST 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 henceforth00001001-- 1997
Vespa ET2 50 2T 3,6 CV, 2,7 kw 1cil. C16000 Bastidores: ZAPC16000 henceforth0001001-- 1997-2003
Vespa ET2 50 2T con catalizador 4,4 CV, 3,2 kw 1cil. C38100 Bastidores: ZAPC38100 henceforth0001001-- 2004-2005
Vespa ET2 50 i Fast Injection 3,6 CV, 2,7 kw 1cil. C12000 Bastidores: ZAPC12000 henceforth0001091-- 1998-2000
Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44100 Bastidores: ZAPM44100 henceforth0001001-ZAPM44100 henceforth0031637 2005-2007
Vespa LX 125 10,3 CV, 7,6 kw 1cil. M44300 Bastidores: ZAPM44300 henceforth0001001-- 2008-2009
Vespa LX 125 2V ie 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 henceforth0001001-- 2010-2013
Vespa LX 125 2V ie Touring 10,7 CV, 7,9 kw 1cil. M68100 Bastidores: ZAPM68100 henceforth0001001-- 2010-2013
Vespa LX 125 3V ie 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 henceforth0001001-- 2012-2014
Vespa LX 125 3V ie Touring 10,7 CV, 7,9 kw 1cil. M68300 Bastidores: ZAPM68300 henceforth0001001-- 2012-2014
Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0001001-ZAPC38101 henceforth0071000 2005-2008
Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0071001-- 2009-2009
Vespa LX 50 2T 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0071001-- 2012-2013
Vespa LX 50 2T /Chic 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0071001-- 2010-2011
Vespa LX 50 2T Touring 4,4 CV, 3,2 kw 1cil. C38101 Bastidores: ZAPC38101 henceforth0001001-- 2010-2013
Vespa LX 50 4T4V 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 henceforth0001001-- 2012-2013
Vespa LX 50 4T4V /Chic 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 henceforth0001001-- 2010-2011
Vespa LX 50 4T4V Touring 4,4 CV, 3,2 kw 1cil. C38700 Bastidores: ZAPC38700 henceforth0001001-- 2010-2013
Vespa LXV 125 10,4 CV, 7,65 kw 1cil. M44301 Bastidores: ZAPM44301 henceforth0001001-- 2007-2009
Vespa LXV 125 ie 10,7 CV, 7,9 kw 1cil. M68102 Bastidores: ZAPM68102 henceforth0001001-- 2010-2013
Vespa LXV 125 ie Vie della Moda 10,7 CV, 7,9 kw 1cil. M68102 Bastidores: ZAPM68102 henceforth0001001-- 2012-2013
Vespa LXV 50 2T 4,4 CV, 3,2 kw 1cil. C38102 Bastidores: ZAPC38102 henceforth0001001-- 2007-2009
