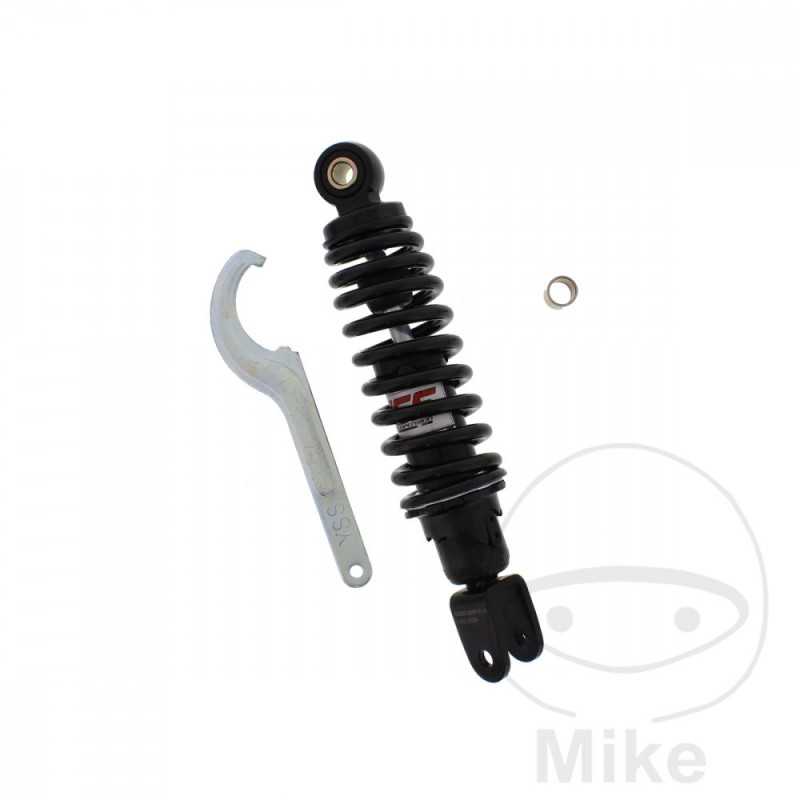

YSS SUSPENSION Adjustable rear suspension shock absorber 789.01.09

TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 230MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 30-50
SPRING LENGTH: 140 MM
SPRING DIAMETER: 30/38 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha CY 50 Jog 1cil. 3KJ 3KJ6 Bastidores: 3KJ-4996101-- 1992-2001
Yamaha Jog 50 Jog Z 1cil. 4SC 4SC1 Bastidores: 4SC henceforth01437-- 1995
