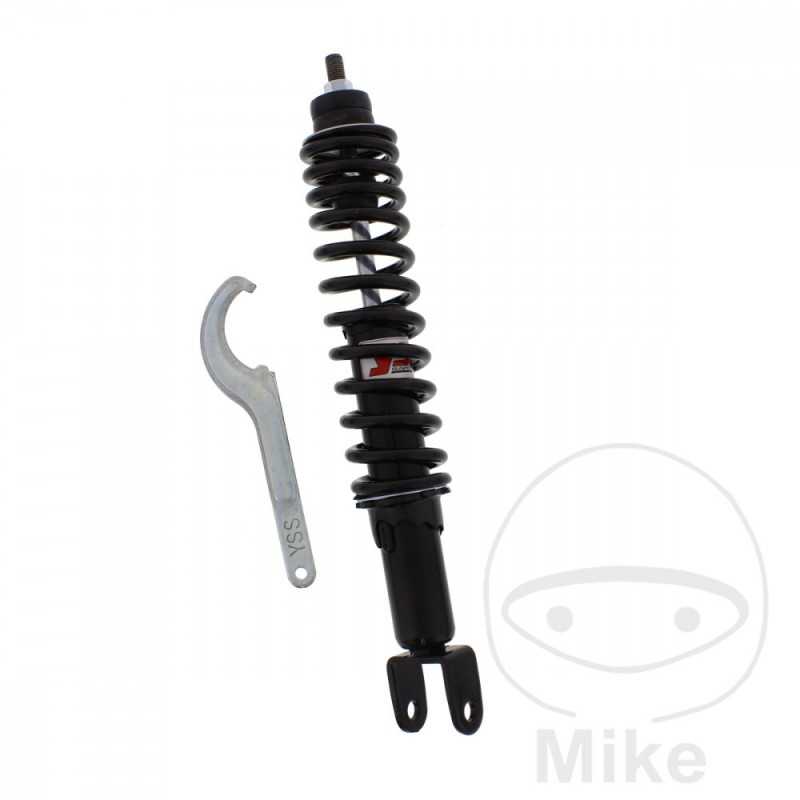

YSS SUSPENSION Adjustable rear suspension shock absorber 789.00.90

TYPE: OIL PRESSURE
UPPER FIXING: BOLT
BOLT DIAMETER: 10 MM
LENGTH: 310MM
LOWER FIXING: FORK
FORK WIDTH: 33 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 200 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Drive 50 GT 4,6 CV, 3,4 kw 1cil. - Bastidores: --- 2016-2017
Piaggio Liberty 50 2T 3,8 CV, 2,8 kw 1cil. C15000 Bastidores: ZAPC15000 henceforth0001001-- 1998-2003
Piaggio Liberty 50 2T 4,1 CV, 3 kw 1cil. C37200 Bastidores: ZAPC37200 henceforth0001001-- 2004
Piaggio Liberty 50 2T 4,6 CV, 3,4 kw 1cil. C42100 Bastidores: --- 2006
Piaggio Liberty 50 2T 4,6 CV, 3,4 kw 1cil. C42100 Bastidores: ZAPC42100 henceforth0001001-- 2005
Piaggio Liberty 50 2T 4,6 CV, 3,4 kw 1cil. C42500 Bastidores: ZAPC42500 henceforth0001001-- 2007-2008
Piaggio Liberty 50 2T 4,6 CV, 3,4 kw 1cil. C49100 Bastidores: ZAPC49100 henceforth0001001-- 2009-2016
Piaggio Liberty 50 4T 3,5 CV, 2,6 kw 1cil. C28200 Bastidores: ZAPC28200 henceforth0001293-- 2001
Piaggio Liberty 50 4T 3,5 CV, 2,6 kw 1cil. C49200 Bastidores: ZAPC49200 henceforth0001001-- 2009-2015
Piaggio Liberty 50 S 2T Sport 4,6 CV, 3,4 kw 1cil. C42106 Bastidores: ZAPC42106 henceforth0001001-- 2006
Piaggio Liberty 50 S 2T Sport 4,6 CV, 3,4 kw 1cil. C42501 Bastidores: ZAPC42501 henceforth0001001-- 2007-2009
Piaggio Sfera 125 10 CV, 7,4 kw 1cil. M01000 Bastidores: ZAPM01000 henceforth0001006-- 1995-1998
Piaggio Sfera 50 2 DT catalizador 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 henceforth00001001-- 1997
Piaggio Sfera 50 2 DT RST 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 henceforth00001001-- 1997
