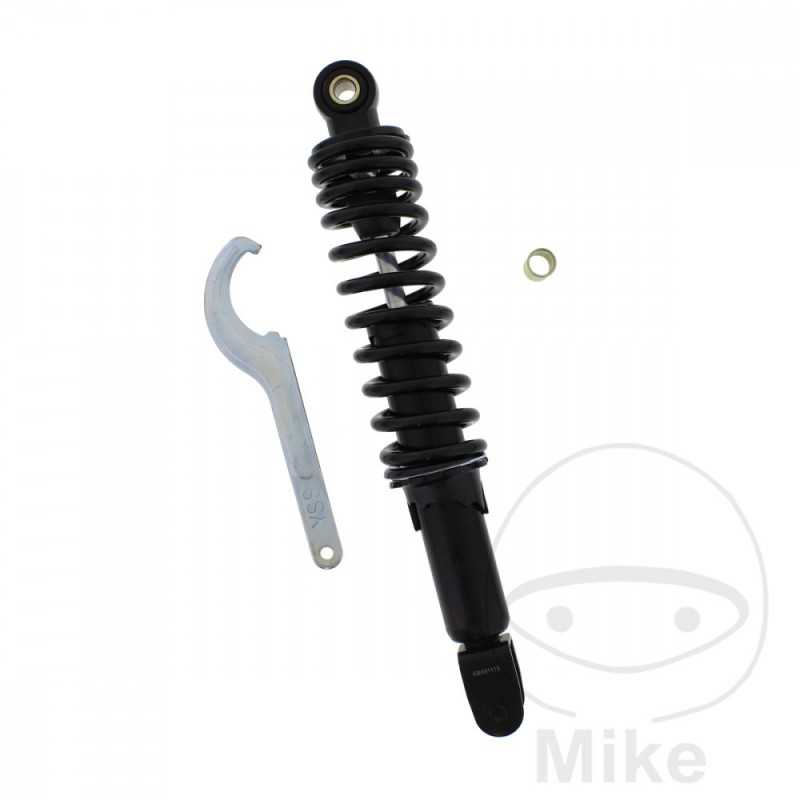

YSS SUSPENSION Adjustable rear suspension shock absorber 789.00.71

TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 310MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 170 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia SR 50 AC cilindro horizontal 2,7 CV, 2 kw 1cil. MR/LF Bastidores: --- 1994-1996
Aprilia SR 50 AC Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1992-1993
Aprilia SR 50 AC Replica cilindro horizontal 2,7 CV, 2 kw 1cil. MR/LF Bastidores: --- 1994-1996
Aprilia SR 50 AC Replica Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1994
Aprilia SR 50 AC Urban Kid Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1992-1993
Aprilia SR 50 AC WWW 4,2 CV, 3,1 kw 1cil. LY000 Bastidores: --- 1997-1998
Aprilia SR 50 AC WWW KAT 4,2 CV, 3,1 kw 1cil. LYH00 Bastidores: --- 1999-2002
Aprilia SR 50 LC cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZ010 Bastidores: --- 1997-1998
Aprilia SR 50 LC Netscaper cilindro horizontal 4,6 CV, 3,4 kw 1cil. MZ010 Bastidores: --- 1997-1998
Aprilia SR 50 LC Racing cilindro horizontal 4,5 CV, 3,3 kw 1cil. MZL10 Bastidores: --- 1999
Aprilia SR 50 LC Racing cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZC00 Bastidores: --- 1997-1998
Aprilia SR 50 LC Replica cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZC00 Bastidores: --- 1997
Aprilia SR 50 LC Replica cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZF00 Bastidores: --- 1998
Aprilia SR 50 LC Stealth cilindro horizontal 4,5 CV, 3,3 kw 1cil. MZL10 Bastidores: --- 1999
Aprilia SR 50 LC Stealth cilindro horizontal 4,8 CV, 3,5 kw 1cil. MZC00 Bastidores: --- 1997-1998
Beta Ark 50 AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth70003331-ZD3BS4C4 henceforth70003931 2007
Beta Ark 50 AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth80003992-ZD3BS4C4 henceforth80500000 2008
Beta Ark 50 AC 4 CV, 3 kw 1cil. BS4C20 Bastidores: --- 1999-2003
Beta Ark 50 AC 4 CV, 3 kw 1cil. BS4C40 Bastidores: --- 2004-2006
Beta Ark 50 AC Factory 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthC0006118-ZD3BS4C4 henceforthC0006245 2012
Beta Ark 50 AC Factory 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthD0006337-ZD3BS4C4 henceforthD0006411 2013-2014
Beta Ark 50 AC HB 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthD0006337-ZD3BS4C4 henceforthD0006411 2013-2014
Beta Ark 50 AC One 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth90004900-ZD3BS4C4 henceforth90005440 2009
Beta Ark 50 AC One 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthA0005441-ZD3BS4C4 henceforthA0006246 2010
Beta Ark 50 AC One 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthB0005793-ZD3BS4C4 henceforthB0005967 2011
Beta Ark 50 AC One 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthC0006118-ZD3BS4C4 henceforthC0006245 2012
Beta Ark 50 AC One 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthD0006337-ZD3BS4C4 henceforthD0006411 2013
Beta Ark 50 AC Paddock 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth80003992-ZD3BS4C4 henceforth80500000 2008
Beta Ark 50 AC Paddock 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth90004900-ZD3BS4C4 henceforth90005440 2009
Beta Ark 50 AC Paddock 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthA0005441-ZD3BS4C4 henceforthA0006246 2010
Beta Ark 50 AC Paddock 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthB0005793-ZD3BS4C4 henceforthB0005967 2011
Beta Ark 50 AC Paddock 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthC0006118-ZD3BS4C4 henceforthC0006245 2012
Beta Ark 50 AC Paddock 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthD0006337-ZD3BS4C4 henceforthD0006411 2013-2014
Beta Ark 50 AC Razor 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthC0006118-ZD3BS4C4 henceforthC0006245 2012
Beta Ark 50 AC Razor 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthD0006337-ZD3BS4C4 henceforthD0006411 2013
Beta Ark 50 AC Tribe 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth80003992-ZD3BS4C4 henceforth80500000 2008
Beta Ark 50 AC Tribe 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth90004900-ZD3BS4C4 henceforth90005440 2009
Beta Ark 50 AC Tribe 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthA0005441-ZD3BS4C4 henceforthA0006246 2010
Beta Ark 50 AC Tribe 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthB0005793-ZD3BS4C4 henceforthB0005967 2011
Beta Ark 50 AC Tribe 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthC0006118-ZD3BS4C4 henceforthC0006245 2012
Beta Ark 50 AC Tribe 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthD0006337-ZD3BS4C4 henceforthD0006411 2013-2014
Beta Ark 50 LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth70009961-ZD3BS4C3 henceforth70012430 2007
Beta Ark 50 LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth80012431-ZD3BS4C3 henceforth80013931 2008
Beta Ark 50 LC 4 CV, 3 kw 1cil. BS4C00 Bastidores: --- 1999-2003
Beta Ark 50 LC 4 CV, 3 kw 1cil. BS4C30 Bastidores: --- 2004-2006
Beta Ark 50 LC Factory 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthC0015864-ZD3BS4C3 henceforthC0016992 2012
Beta Ark 50 LC Factory 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthD0016329-ZD3BS4C3 henceforthD0016378 2013-2014
Beta Ark 50 LC HB 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthD0016329-ZD3BS4C3 henceforthD0016378 2013-2014
Beta Ark 50 LC One 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth80012431-ZD3BS4C3 henceforth80013931 2008
Beta Ark 50 LC One 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth90013932-ZD3BS4C3 henceforth90014631 2009
Beta Ark 50 LC One 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthA0014632-ZD3BS4C3 henceforthA0015346 2010
Beta Ark 50 LC One 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthB0015347-ZD3BS4C3 henceforthB0015863 2011
Beta Ark 50 LC One 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthC0015864-ZD3BS4C3 henceforthC0016992 2012
Beta Ark 50 LC One 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthD0016329-ZD3BS4C3 henceforthD0016378 2013
Beta Ark 50 LC Paddock 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth80012431-ZD3BS4C3 henceforth80013931 2008
Beta Ark 50 LC Paddock 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth90013932-ZD3BS4C3 henceforth90014631 2009
Beta Ark 50 LC Paddock 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthA0014632-ZD3BS4C3 henceforthA0015346 2010
Beta Ark 50 LC Paddock 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthB0015347-ZD3BS4C3 henceforthB0015863 2011
Beta Ark 50 LC Paddock 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthC0015864-ZD3BS4C3 henceforthC0016992 2012
Beta Ark 50 LC Razor 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthC0015864-ZD3BS4C3 henceforthC0016992 2012
Beta Ark 50 LC Razor 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthD0016329-ZD3BS4C3 henceforthD0016378 2013
Beta Ark 50 LC Tribe 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth80012431-ZD3BS4C3 henceforth80013931 2008
Beta Ark 50 LC Tribe 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth90013932-ZD3BS4C3 henceforth90014631 2009
Beta Ark 50 LC Tribe 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthA0014632-ZD3BS4C3 henceforthA0015346 2010
Beta Ark 50 LC Tribe 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthB0015347-ZD3BS4C3 henceforthB0015863 2011
Beta Ark 50 LC Tribe 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthC0015864-ZD3BS4C3 henceforthC0016992 2012
Beta Ark 50 LC Tribe 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthD0016329-ZD3BS4C3 henceforthD0016378 2013-2014
Beta Ark 50 RR AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth90004900-ZD3BS4C4 henceforth90005440 2009
Beta Ark 50 RR AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthA0005441-ZD3BS4C4 henceforthA0006246 2010
Beta Ark 50 RR AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforthB0005793-ZD3BS4C4 henceforthB0005967 2011
Beta Ark 50 RR LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth80012431-ZD3BS4C3- henceforth80013931 2008
Beta Ark 50 RR LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth90013932-ZD3BS4C3 henceforth90014631 2009
Beta Ark 50 RR LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthA0014632-ZD3BS4C3 henceforthA0015346 2010
Beta Ark 50 RR LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforthB0015347-ZD3BS4C3 henceforthB0015863 2011
KTM Ark 50 AC 4 CV, 3 kw 1cil. BS4C20 Bastidores: --- 1998-1999
Kymco People 50 S 4T 4,1 CV, 3 kw 1cil. B91000 B9 Bastidores: RFBB91000-- 2007-2016
Kymco People 50 S 4T Elegance 4,1 CV, 3 kw 1cil. B91000 B9 Bastidores: RFBB91000-- 2014-2018
Kymco Sniper 50 DD 1cil. PR50BB Bastidores: PR50BB100-- 1994-1996
MBK EW 50 Stunt 3,4 CV, 2,5 kw 1cil. - 5WK2 Bastidores: --- 2003
MBK EW 50 Stunt 3,4 CV, 2,5 kw 1cil. SA092 5LH2 Bastidores: SA092004-200101-- 2000
MBK EW 50 Stunt 3,4 CV, 2,5 kw 1cil. SA092 5LH4 Bastidores: SA092004-200101-- 2001
MBK EW 50 Stunt 3,4 CV, 2,5 kw 1cil. SA092 5LH6 Bastidores: SA092004-200101-- 2002
Piaggio Free 25 FL DT 1,4 CV, 1 kw 1cil. FCS2T Bastidores: FCS2T henceforth001001-- 1995-1999
Piaggio Free 25 FL TT 1,4 CV, 1 kw 1cil. FCS2T Bastidores: FCS2T henceforth001001-- 1995-1999
Piaggio Free 25 TT 1,4 CV, 1 kw 1cil. FCS1T Bastidores: FCS1T henceforth0001001-- 1992-1995
Piaggio Free 50 FL DT 4 CV, 3 kw 1cil. FCS2T Bastidores: FCS2T henceforth001001-- 1995-2002
Piaggio Free 50 FL DT Kat 4 CV, 3 kw 1cil. FCS2T Bastidores: FCS2T henceforth001001-- 1995-2002
Piaggio Free 50 FL TT 4 CV, 3 kw 1cil. FCS2T Bastidores: FCS2T henceforth001001-- 1995-1999
Piaggio Free 50 FL TT Kat 4 CV, 3 kw 1cil. FCS2T Bastidores: FCS2T henceforth001001-- 1995-1999
Piaggio Free 50 TT 4 CV, 3 kw 1cil. FCS1T Bastidores: FCS1T henceforth0001001-- 1992-1995
Piaggio Free 50 TT catalizador 4 CV, 3 kw 1cil. FCS1T Bastidores: FCS1T henceforth0001001-- 1992-1995
